Tracer Particle Generator System, TPG-M4, Brand Name : Microrite

Microrite’s Tracer Particle Generator system provides a cloud of Tracer Particles that are submicron (<1.0 micrometer/micron) in size and are Neutrally Buoyant. These long lasting, Neutrally Buoyant Tracer Particles are ideal for getting a visual representation of air flow patterns in cleanrooms, barrier systems and the interfaces between areas of different classifications (e.g., Grade A/ISO Class 5 and Grade B/ISO Class 7 areas).

The Tracer Particles used by Microrite, Inc. are NOT SMOKE PARTICLES. When properly diffused, a Neutrally Buoyant cloud-like fog of Tracer Particles sized between 0.3M and 0.5M is released into the cleanroom environment. These sterile particles are comprised of USP Grade Materials Such as Triethylene Glycol, Monopropylene Glycol, Dipropylene Glycol and purified water. The cloud of Tracer Particles is oil and glycerin free, non-condensing, FDA GRAS approved and is non-toxic. For typical Air Flow Visualization Studies, this fog does not condense and pool up on cleanroom surfaces or cleanroom equipment.The calibrated Tracer Particle Generator system produces Neutrally Buoyant, long lasting, submicron Tracer Particles for accurate airflow visualization in cleanrooms and controlled environments.

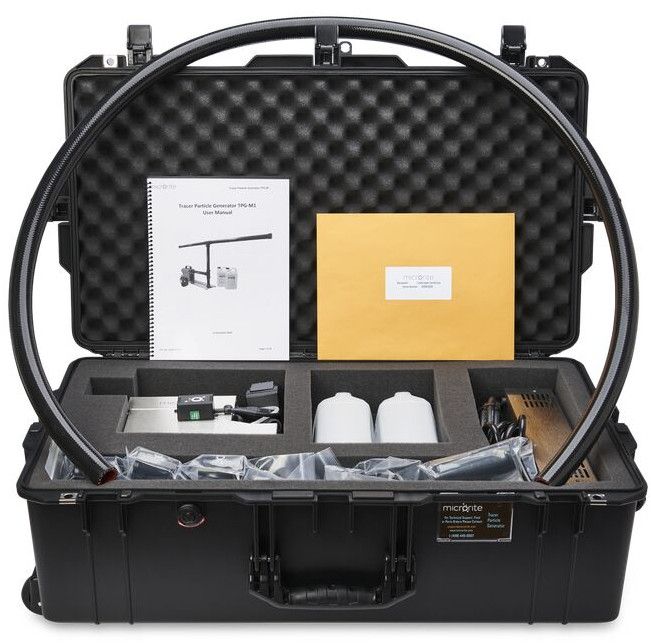

TPG-M4 includes the following items:

Cleanroom Vaporizer

* 400-Watt Tracer Particle Vaporizer

* Stainless Steel Enclosure

Battery Unit

* 12 VDC 15mA/Hr Non-Spillable Battery

Battery Charger

* Trickle Charge (Approximately 12hours/charge)

* Universal AC Power Supply Type G (Ireland) Plug

* Stainless Steel Enclosure

* 100-240 VAC Input to 12 VDC Output @ 30 Amp

Wireless Remote-Control System

* Transmitter

* Receiver

Diffuser Wand System

Diffuser Manifold with (2) 24 Inch diffusers

(2) meters of high-temperature lightweight flexible hose

(1) 24 Inch blank sections

(2) Couplings

(1) Diffuser coupling

(1) Tee coupling

(1) Elbow coupling

(2) End caps

Locking screws

(2) Liters Short Duration Tracer Particle Solution

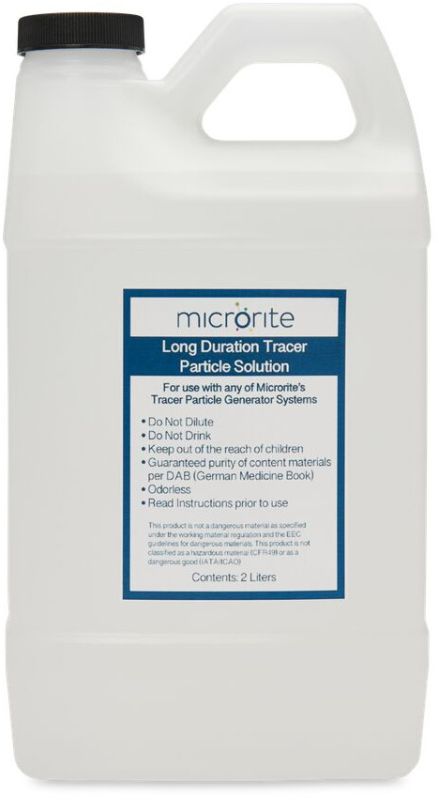

(2) Liters Long Duration Tracer Particle Solution

Air Travel Case with retractable handle and stainless-steel bearing wheels.
