Description:

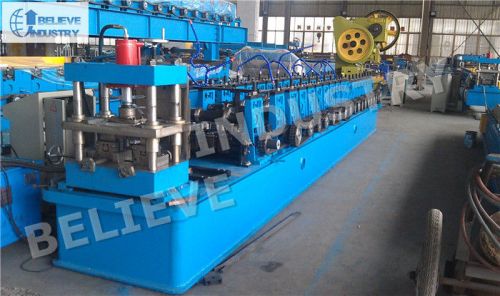

according to specific requirements of customers, we can manufacture stud & track forming machines with different specifications. Main components of this machine include decoiler, roll former, cutter, hydraulic pump station, product table, and control cabinet, etc.
technical parameters
raw material carbon steel, galvanized steel, q235
material thickness 1.5-2.5mm
material width depend on specific profile
diameter of shaft 76mm
material of shaft 45# steel
material of rolls
gcr15 over quenching hrc 58-62°
main power 15kw
forming speed 15-20mmin
forming station 20 stations
cutting type hydraulic cutting
cutting blade
cr12 mov
