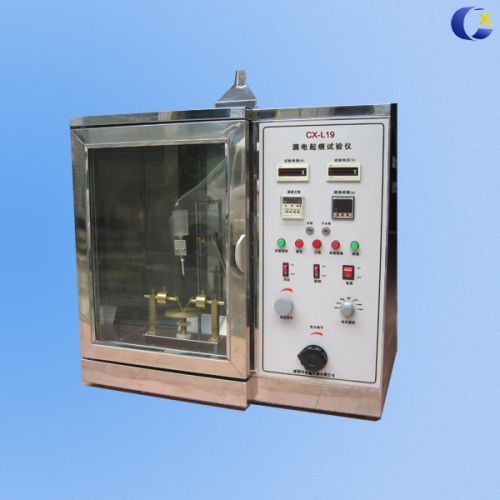

Tracking Index Tester

We are offering tracking index tester.
Tracking test chamber is intended for determining the degree of protection against formation of conducting paths in solid insulating materials, due to the electric stress and electrolytic contamination of the surface. This method simulates tracking currents on insulation material by providing drops between electrodes. During the process of normal use, insulating material may be exposed to moisture and dirt, if conductive, may cause stress and fire hazard.
Features:
• testing according to iec 60112-2003
• all stainless steel structure.
• the door will be locked automatically when test starts.
• fully automatically testing.
• software controlled test procedure with plc.
• electronic controlled pipette.
• cabinet for testing and fan to exhaust gases.
Technical parameter:
• power source ac 220v 50hz 2.5a.
• electrode voltage ac 100-600 v(adjustable).
• testing interval: 30s+-1s.
• fault indication over 0, 5 a in 2 seconds.
• vent diameter 75mm.
• inside dimension: 800x800x800mm (special order for other size)
• test objects: insulation material
