Technical Specifications

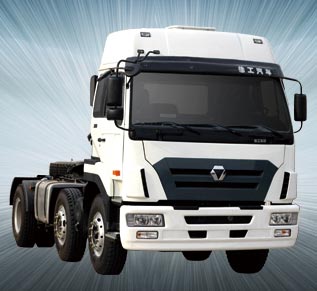

| Model | NXG4205DP |
| Drive type | 6×2 |
| Parameters | |
| Max.travel speed(km/h) | 90 |
| Max.gradeability(%) | 20 |
| Max.braking gradient(%) | 20 |
| Min.turning diameter(m) | 20 |
| Fuel Tank Capacity(L) | 240 |
| Min.ground clearance [full load](mm) | 245 |
| Electric system(v) | 24V |
| Weight | |
| Curb weight(kg) | 6500 |
| Rated load(kg) | 31300,31700 |
| Max.total weight(kg) | 19995 |
| Dimension | |
| Total length(mm) | 6960 |
| Total width(mm) | 2464 |
| Total height [no-load](mm) | 2720,3250 |
| Wheel base(mm) | 1900+2850 |
| Frame(mm) | 280 |
| Leaf spring | 9/9/12+10 |
| Main Parts | |
| Cab | High/flat top |
| Engine | SC8DK260Q3 CA6DL1-26E3 CA6DL1-29E3 |
| Transmission | 8JS118A |
| Front Axle | 5.5 ton double(extra-wide) |
| Rear Axle | Steyr |
| Tire | 10.00-20 11.00-20 |
