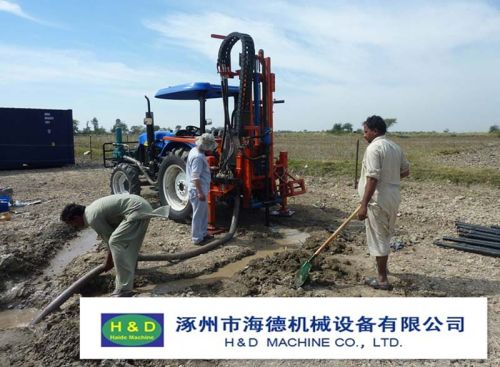

Tractor Drilling Rig, Brand Name : HAIDE, Certification : ISO9001

We are tractor drilling rig.
Hd-t100 drilling rig is mounted on a four-wheel-drive tractor; the hydraulic system is powered from the pto shaft of the chassis with a simple structure . It can drill to any stratum anywhere it can reach. It also move fast like the truck-mounted drills and high cross-country ability like the caterpillar track-mounted drills, perfect mobility and cross-country ability, high efficiency, wide usefully.
This drilling rig is controlled easily，operated flexible, move conveniently meet the request of qhse about do seismic exploration .
Drilling method and depth:
mud drilling: 100m, air drillinghammer drilling: 40m, sonic vibrate drilling: 20m 15m
casing drilling: 12m 20m
hole diameter: 75mm 90mm 102mm
pipe (diameter×length): φ60x2800, φ76x2500, φ89x2000, φ102x1500
explosive method: after lifting the drilling pipes, center of the drilling pipe
multifunctional power swivel sonic vibrate drilling
rating torque: 1310 n.m
rated speed: 0～390 rmin
max. Vibrate frequency: 180 hz
max vibrate force: 194 kn
hydraulic system: working pressure: 180bar
hoistingpush-down system hydraulic cylinder control double speed slid frame
max. Hoisting weight: 2800 kg
max. Push-down force: 14 kn
max. Hoisting speed: 0.85 ms
machine stabilization: two rear jacks
pipe clamp : two direction hydraulic clamp single cylinder clamp (options)
unscrew tool: swivel hydraulic control slide fork well-top hydraulic clamp(options)
engine power: 51.4kw2400rmin
air screw compressor standard
displacement: 5.6 m3min pressure: 7 bar
overall parameter: weight ≤5000 kg
dimension（lxwxh）5000x1200x3300
