Tractor Jinma254 284 Epa

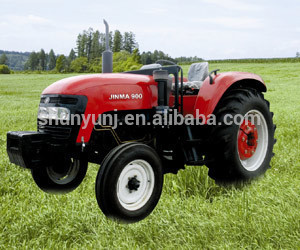

We are offering tractor, tractor parts, farm machinery. Jinma 900 four wheel tractors technical parameters
tractor
parameters model jm900
drive type 2wd
overall dimensions l*w*h(mm): 4396*2038*2810
wheel track (mm) front 1385-1685
rear 1620
wheel base(mm) 2195
ground clearance (mm) 396
rated traction force(n) 17300
construction mass(kg) 3620
min.turning radius(m) 4.0
the oretical speed
(without creeper gear(kmh) forward 2.31 , 2.60 ,5.76 ,8.03,10.04, 15.61,24.98,34.85
reverse 3.10 ,4.83,7.73 ,10.78
the oretical speed
(with creeper gear(kmh) forward 0.46,0.72,1.15,1.61,2.00,3.12,4.99,6.97
reverse 0.62,0.97,1.54,2.16
engine
specifications model 4mc-t79a
type 4-cylinder 4-stroke cycle water cooled,direct-injection
rated power(kwhp) 66.2(90)
rated speed (rpm) 2300
bore*stroke(mm) 110*135
total displacement(l) 5.13
drive
system clutch dual stage
gear box 4*(2+1)*2 szleeve gear shift
main drive one pair of spiral bevel gearing
differential bevel gear
differential lock sliding pin,foot operated
final transmission planeatry reduction gear
travelling
mechanism tyre front 7.50-20
rear 16.9-34
steering gear hydraulic steering
brake oil immersed multiplate disc
working
device hydraulic system lifting capacity at
610mm behind lift pioint (kn) 14900
3-point suspension category:ii
p.t.o shaft rotating speed (rpm) 5401000 or 7201000
spline size 21-φ35 involute spline
options cab.
