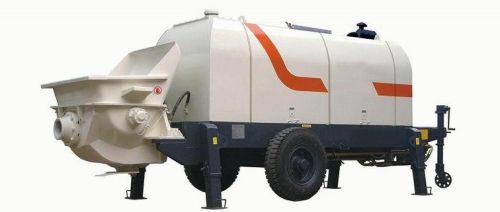

Trailer Mounted Concrete Pump, Power : 112kw

We are offering trailer mounted concrete pump.
Hydraulic system adopts imported factory-assembled valve groups to control concrete pump with much higher reliability;
main electrical components, all imported factory-assembled, fully ensure high reliability of electrical control system;
as the inclined-mounted slide valve is adopted as the distribution valve, the capacity of material-suction is good, and the work is reliable;
the main oil pump with constant-power variable large delivery volume has high efficiency of main power under constant power;
blade, especially designed with little dead angle of agitation, can be fit for many kinds of concrete mix proportions;
due to its functions of automatic recession, the check and change of piston heads will be convenient and rapid;
the text display with large screen which is operated in menu type could lessen operation buttons; and the protection level of the electric control box reaches grade-ip65;
the speed adjustment of the diesel engine automatically controlled by computers had gained the domestically exclusive patents;
as the electro proportional controlling technology is introduced, the pumping displacement could be adjusted steplessly;
with good maintainability, the assembly and disassembly of all wearing parts is very convenient
parameter:
name of parameters
unit
hbts80c-13-112r
max theo. Feeding volume(highlow)
m3h
85
max feeding pressure
mpa
13
type of hydraulic system
open
type of power machine
diesel
specification rotating speed
rm
2200
power
kw
112
model of distribution valve
s valve
diameter of oil urn
mm
125
diameter of transfer cylinder
mm
200
high lowe pressure voltage switch
yes
capacity of hydraulic oil tank
l
580
hopper capacity
m3
0.8
hopper height
mm
1380
dimension(length℅×width℅×height)
mm
6500*2160*2950
total weight
kg
6500
