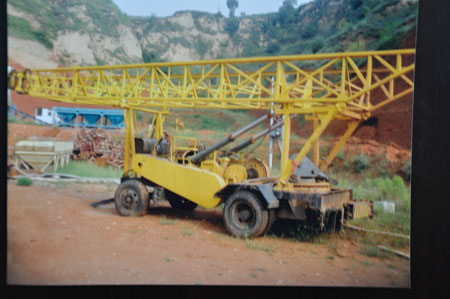

Trailer Mounted Water Well Drilling Rig

We are offering s800 trailer mounted water well drilling rig.
s800 trailer mounted water well drilling rig is composed of motor, clutch, gearbox, turning box, main winch, assistant winch, turntable, tower etc. All components are installed in the portable chassis that make it compact and easy to transport.
s800 trailer mounted water well drilling rig is designed that drill rod drilling is actuated by turntable rotary.s800 trailer mounted water well drilling rig is mainly used for water sources exploring, industrial and agricultural water well drilling , ventilation holes drilling for underground tunnels . With mechanical transmission, both electric motor and diesel engines as power , part of it is operated by hydraulic. It can drill in various geological conditions by applying reverse circulation drilling or direct circulation drilling.
s800 trailer mounted water well drilling rig is characterized by large through-hole diameter, high efficiency drilling, trailer type moving and easy transport .
mud pump
this drilling mud pump is horizontal reciprocating dual cylinder, double acting piston type. It’s used for pressing washing liquid (mud or water) into the drilling well when the geological drilling performs and is adaptable to the 600-1000m water well drilling rig.
