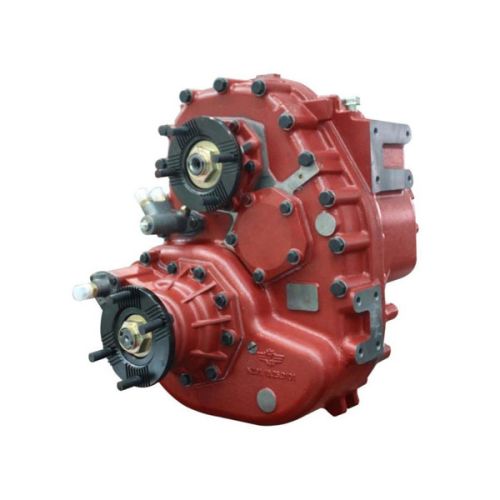

Transfer Case

There are many other models can be provided. If you were interested, please contact with us.
The technical datas of zqc2000 are listed in below:
1. Max input torque: 25000nm 　
2.max.input speeddirection: 2800rpmclockwise 　
3.center distance:300mm 　
4.ratio
on-road 0.89 off-road 1.536 　
on-road 1.00 off-road 1.536 　
5. Shifting operation type position: 　
3-pneumatic backword ;
3-mechanic backword or forward 　
6. Front axle output operation (or differential lock operation): pneu.operation with indication swicth 　
7. Torque ratio proportion 1:2.2141:2.69
(differential is optional)
8. Air pressure 6.5~8 bar 　
9.85w90(gl-5) lubricant oil(add to oil level) air pressure with differential without differential: 8.4l 9.0l 　
10. Total weight: 365kg345kg 　
11. Optional unit :n200 p.t.o or connecting device for zf8605 oil pump is optional 　
the transfer case can be modified as per customer's requirements.
