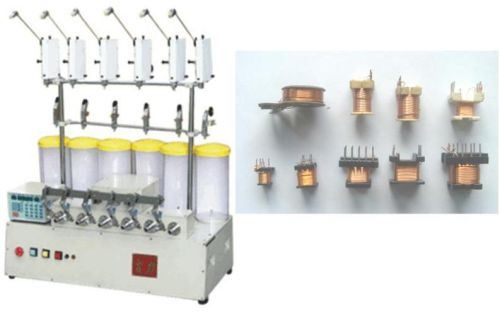

Transformer Coil Winding Machine, Brand Name : SHILI

We are offering transformer coil winding machine.
Mcsh986-30-type\r\r features:\r\rthis machine, easy operation, efficient,automatic stop, fast parking brake, especially suitable for small transformer, electronic watches, ballast, the relay, the buzzer,and inductance coil winding\r\r \r\rtechnial parameter:\r\r \r\rno.of spindle\r\r6\r\rwire tensioner\r\r6\r\rbarrel\r\r6\r\rspeed\r\rhighest:4300turns/min low:2150trus/min\r\rwire size\r\r0.04-0.3mm\r\rmax.bobbin size diameter\r\r65mm\r\rwinding width\r\r70mm\r\rpower source\r\r220v50hz\r\rmain axis motor\r\rmhc711-230w\r\rwinding motor\r\rstepping motor\r\rmachine size\r\rtank780x930x670mm desk730x930x530mm\r\rpacking size\r\rtank900x1010x730mm desk430x1010x620mm\r\rnet/ gross weight\r\rtank83kg、122kg desk60kg/84kg.
