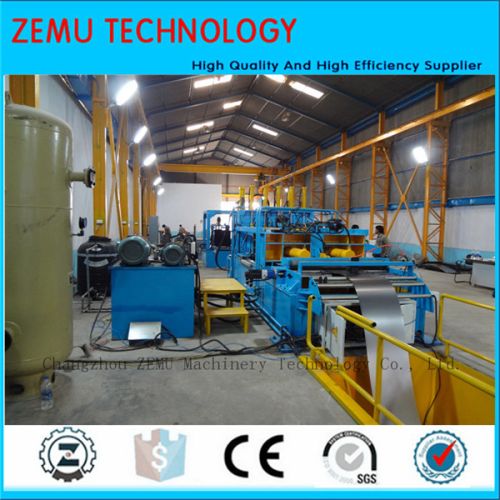

Transformer Corrugated Tank Fin Manufacturing Machine

1. Description of transformer corrugated tank fin manufacturing machine
1) includes materials guidance, feeding, front pack, rear pack, edge folding,shearing and parts collection.
2) the hydraulic system is automatic controlled and stable running
3) human interface computer dialogue display, reasonable structure and easy in operation, labor saving (1~2
labors).
4) perform the process of forming, shearing and edge folding within one time when you input all operation
parameters on computer unit.
2. Parts of transformer corrugated tank fin manufacturing machine
1) hydraulic automatic decoiler machine
2) transformer tank fin forming machine
3) hydraulic transformer tank fin shearing and bending machine
4) automatic transformer tank fin welding machine
5) hydraulic station
6) plc control system
3. Features of transformer corrugated tank fin manufacturing machine
1) specially designed for forming and welding transformer tank fin.
2) plc control, fully automatic line: automated conveying, clamping and welding.
3) touch screen control it is easy and convenient to operate.
4) high-speed welding, much faster than manual welding.
5) argon arc welding, the welding is close and the surface is very clean and smooth.
4. Parameters of transformer corrugated tank fin manufacturing machine
1) plate width: 300mm-1600mm
2) plate thickness: 0.5mm-1.75mm
3) corrugation height: 50mm-400mm
4) bending height: 20mm
5) forming speed: 3-4finsmin
6) total power of motors: 40kw
7) corrugation pitch: >=45mm
