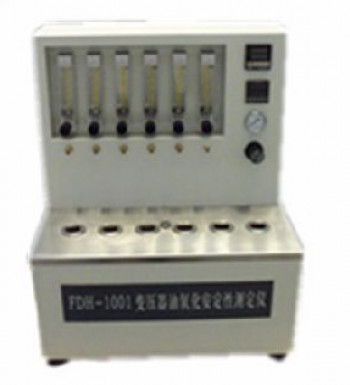

Transformer Oil Oxidation Stability Tester

 fdh-1001 transformer oil oxidation stability tester

scope

the instrument uses advanced contemporary technology, set machinery, optical electronics and computer technology in one, it can be temperature measurement, temperature control. temperature control accuracy and stability.

    the instrument structure is reasonable, stable performance, simple operation, it is the ideal analysis and testing equipment.

features

1, constant temperature metal bath system:

      the use of aluminum as a bath, to avoid oil pollution and oil and gas pollution, but also to avoid accidents.

2, the temperature control system:

      using intelligent temperature controller with microprocessor, with self-tuning, self-diagnosis function, pid three parameters to adjust the temperature, auxiliary heating automatically shut down, so high precision temperature control, stable and reliable performance.

3, with six test baths, both for a sample test can also be up to six samples of the test, convenient and flexible.

4, equipped with six flow meters, can be adjusted and directed into the six oxidation tube gas flow.

5, equipped with digital timer, used to set and record the test time.

technical parameters

1, the power supply: ac220v 50hz, power consumption: ≤ 1100w.

2, temperature control mode: digital temperature control table automatic temperature control.

3, temperature range: room temperature ~ 160 ℃,

4, temperature control accuracy: set temperature ± 0.2 ℃.

5, temperature components: thermal resistance.

6, the number of samples: 6 road, at the same time for six samples.

7, the heating method: metal bath
