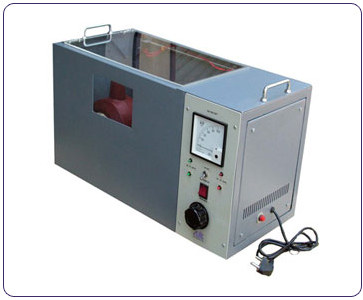

Transformer Oil Tester

AJIT Transformer Oil Set is completely self contained, compact & portable unit giving smooth variable output voltage from zero to 60/80/100KV for testing the dielectric strength of insulating oil.
The set has been specially designed for the testing the die electric breakdown Voltage of insulating liquids.
Features :

• Manual or Motorised Version.
• Highly Sensitive Electronics Circuit Breaker
• Heavy Duty H.V. Transformer (Epoxy Cast)
• Tried, Proven & Tested design.
• Zero Interlock for output.
• Door Micro s/w for operator’s safety.
• Digital or Analog KV Meters.

The oil cups are made of Acrylic & have removable electrodes for easy cleaning & polishing. The unique design of the lectrode holders eliminate oil leakages around shafts.
ACCESSORIES SUPPLIED WITH EACH SET :
1. OIL CUP WITH ONE SET OF ELECTRODES.
2. ONSE SET OF GO/NO-GO GAUGES
3. ONE SET OF INSTRUCTION MANUAL.
SAFETY
Maximum possible safety of the operator as well as the equipment is ensured by a safety conscious design. The voltage controller is inter locked at its minimum position so that H.V. can be switched ON only when the voltage controller is brought to zero after every test or interruption. The acrylic door leading to H.V. Terminals has a micro switch fitted so that opening of the acrylic door shuts the H.V. OFF.
APPLICATION
AJIT oil set is completely self contained, compact & portable unit giving smooth variable output voltage from zero to 60/80/100KV for testing the dielectric strength of insulating oil. The set has been specially designed for testing the dielectric breakdown Voltage of insulating liquids as per the directions mentioned in IS 6792.
OIL CELL
The oil cells are made of Acrylic & have removable electrodes for easy cleaning & polishing. The unique design of the electrode holders eliminate oil leakages around shafts.
ACCESSORIES SUPPLIED WITH EACH SET :

• One set of instruction manual
• Oil Cell with one set of electrodes
• One set of GO/NO-GO Gauges
