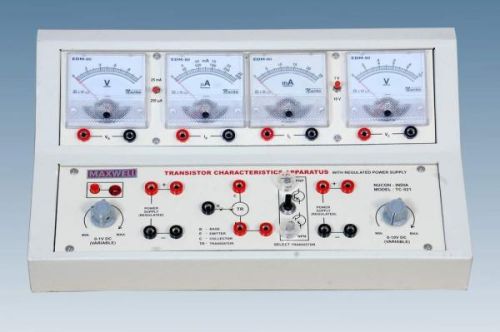

Transistor Characteristic Apparatus

By keeping track with the market development, we are manufacturing and supplying optimum quality Transistor Characteristic Apparatus. Offered apparatus is used in many electronic sector to provide ht volts and current with the help of a toggle switch. Provided apparatus is tested on all levels of production to ensure its quality. This apparatus is manufactured using highly pioneered technology under the guidance of deft professionals in compliance with market defined quality standards. Furthermore, we provide this Transistor Characteristic Apparatus to clients at discounted prices.

Features:

Details:

 Objective: Input/Output Char.of Common Base PNP& NPN Transistors & Inpu / Output Characteristics of Common Emitter PNP & NPN Transistors.


Features : Instrument comprises of Two DC Regulated Power Supplies 0-10V DC/150mA 0-1VDC/150mA, four acrylic meters for voltage &  current measurement , one PNP & one NPN Transistor mounted on  the panel, connections of Supplies , Transistors brought out at 4mm Sockets. NPN or NPN transistor can be selected by use of toggle switch.                   Special design of double tappered powder coated box make it very Elegant, attractive & it also gives proper viewing of analog meters.
