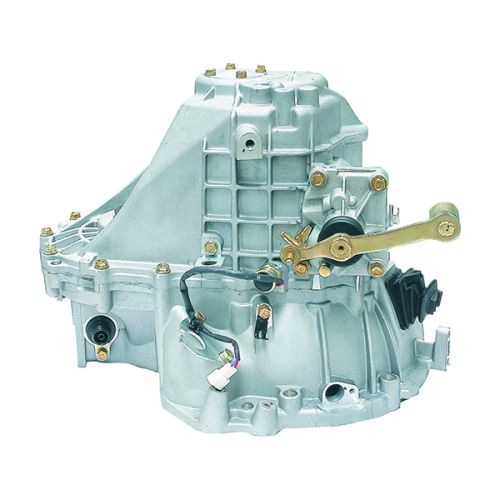

The technical datas of 5t16 are listed in below chart.
1. Basic structure: ff drive type: two-axis, fully synchronized shifting of forward gears; the transmission, main reducing gear and differential are as a whole, with an odometer sensor.
2. Main transmission ratio (optional):4.3084.467
3. Transmission ratio of all gears (optional)
4. Two-axis center distance:68 120 mm
5. Maximum input torque:160 n.m
6. Shift control mechanism: double rod control
7. Amount of lubricating oil and model:2l 75w-90 gl-4
8. Matching engine vehicle type:lf481lifan 620 630
we also can design the transmission according to your requirements, wo have our own technical center.
