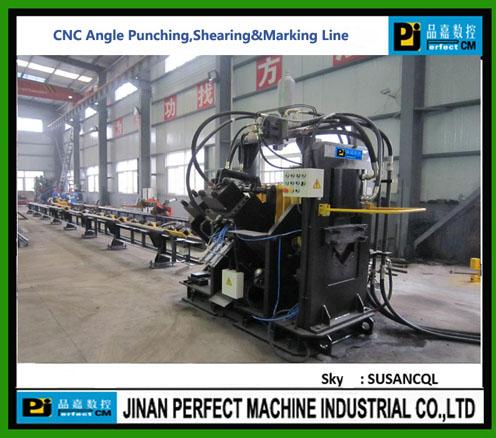

Transmission Tower CNC Angle Line for punching

₹ 90 Lakh - ₹ 1.17 Cr / Units

MOQ1 Set(s)
Brand NamePERFECT
Conditionnew
Used Forpunching, shearing and marking angles
After-Sales Service ProvidedYES
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Supplier
Year of Establishment 2002

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NamePERFECT
Conditionnew
After-Sales Service ProvidedYES
Used Forpunching, shearing and marking angles
Country of OriginChina
CNC Angle linepunching machine
Model NumberPD
angle punchCutting machine

We are offering cnc angle line machine for marking, punching and cutting.
Applicable industry:
the machine is the automatic special equipment used for angle steel marking, punching, and shearing mainly in the field of angle steel tower industry.
Specifications:
model tbl2020 tbl1412
angle size(mm) 50x50x3-200x200x20 ; 40x40x3-140x140x12
max. Punching (d t)(mm) 26x20 26x12
punching force(kn) 1000 600
marking force(kn) 800 800
shearing force(kn) 1400 900
max. Length of blank(m) 14 12
max. Length of finished 14 12
no. Of punching head on each side(piece) 3 2
no. Of character group 4 4
no. Of character in each group 12 12
range of stadia(mm) 20170(stepless) 15110(stepless)
character size (mm) 141019
no. Of cnc axes 3
shearing mode dual blade shearing
max. Infeed speed (mmin) 40 60
processing precision accordance with gb2694-81
programming mode input by keyboard, rs232 interface, floppy disk and usb interface
overall dimensions(mm) 32x7x2.6 ; 25.4x7x2.2
net weight of machine(kg) 16500 14500
JINAN PERFECT MACHINE INDUSTRIAL CO.,LTD
