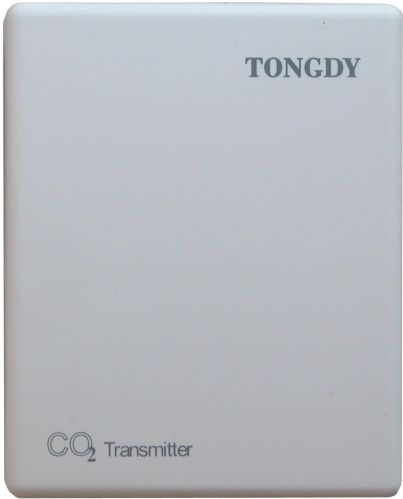

Transmitter

We are offering transmitter.  real-time detecting co2 level.
 ndir infrared co2 module inside with four co2 detection range selectable.
 co2 sensor has self-calibration algorithm and 15
years lifetime
 wall-mounting
 providing one analog output with voltage or current selectable
 0~10vdc/4~20ma selectable easily via jumpers
 special “l” series with 6 lights indicates co2 level and makes co2 level show clearly.
 provide a special model with a on/off relay output
with a touch button to operate a fan control.
 design for hvac, ventilation systems, offices, or other public places.
 modbus rs485 communication interface optional: 15kv antistatic protection, independent address setting
 ce-approval
 for duct probe co2 transmitter, and co2+ temp.+ rh 3 in 1 transmitter, please see our other products.
• specifications
gas detected carbon dioxide (co2)
sensing element non-dispersive infrared detector (ndir)
accuracy@25℃(77℉),2000ppm ±30ppm + 3% reading
stability 800ppm and≤1,200ppm
1st and 2nd yellow lights on as co2 measurement>1,200ppm and≤1,400ppm
1st red light on as co2 measurement>1,400ppm and≤1,600ppm
1st and 2nd red lights on as co2 measurement>1,600ppm
modbus interface modbus rs485 interface
9600/14400/19200(default)/28800 or 38400bps (programmable selection), 15kv antistatic protection.
operation conditions 0~50℃(32~122℉); 0~95%rh, non condensing
storage conditions 0~50℃(32~122℉)
net weight 180g
dimensions 100mm×80mm×28mm
installation standard 65mm×65mm or 2”×4”wire box
approval ce-approval
• models guide
type model description
co2 detector
(1xanalog output) f2000tsm-co2-s100-v/a-02 1xanalog output, co2 range: 0~2,000ppm
f2000tsm-co2-s100-v/a-05 1xanalog output, co2 range: 0~5,000ppm
f2000tsm-co2-s100-v/a-20 1xanalog output, co2 range: 0~20,000ppm
f2000tsm-co2-s100-v/a-50 1xanalog output, co2 range: 0~50,000ppm
co2 detector
(1xanalog output, modbus rs485 interface) f2000tsm-co2-s101-v/a-02 1xanalog output, modbus rs485 communication.
f2000tsm-co2-s101-v/a-05 1xanalog output, modbus rs485 communication
f2000tsm-co2-s101-v/a-20 1xanalog output, modbus rs485 communication.
f2000tsm-co2-s101-v/a-50 1xanalog output, modbus rs485 communication.
Co2 detector
with 6 indicator lights f2000tsm-co2-l100-n-02 6 lights indicate co2 measurements range
f2000tsm-co2-l101-n-02/05 6 lights indicate co2 measurements range,
modbus interface
f2000tsm-co2-l100–v/a-02/05 6 lights indicate co2 measurements range,
1x analog output
f2000tsm-co2-l101–v/a-02/05 6 lights indicate co2 measurements range,
1x analog output, modbus rs485 interface
f2000tsm-co2-l110-n-02 6 lights indicate co2 measurements range,
1x relay output
f2000tsm-co2-l111-n-02 6 lights indicate co2 measurements range,
1x relay output, modbus interface
accessories power adaptor-e plug-in power adapter, input: 100~240vac ;
output: dc 24v/ 240ma. European plug
power adaptor- a plug-in power adapter, input: 100~240vac;
output: dc 24v 240ma. American plug.
