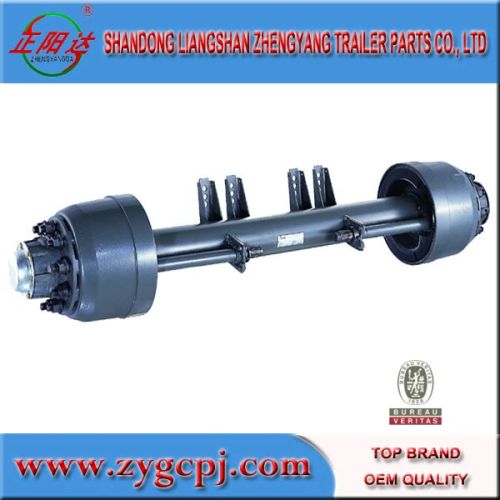

Transport Trailer Axle

We iffer Transport Trailer Axle.
American Style Axle
Product Description:
1. ISO9001 certificate.
2. OEM 13T American axle.
3. On time delivery.
4. Steady supply semi trailer truck.
5. Lower price.
Description ModelNo. Capacity
(T) Brake
(mm) centre distance of brake chamberL4 Axle Tube
(mm) centre distance of spring seat L3 Stud P.C.D Track L2(mm) Bearing
outer inner Total Length L1(mm) Weight
(KG) Recommended Wheel
Inboard Drum Axle ZY-A1045 13 420*180 390 150*150Φ127 ≥930 10*M22*1.5 335 1840 518445
518445 ≈2192 370 7.50V-20
Inboard Drum Axle ZY-A1046 14 420*220 350 150*150 ≥930 10*M22*1.5 335 1850 518445
518445 ≈2185 370 7.5V-20
Inboard Drum Axle ZY-A1047 16 420*220 354 150*150 ≥940 10*M22*1.5 335 1850 518445
220149 ≈2200 420 8.00V-20
Inboard Drum Axle ZY-A1048 20 420*220 354 150*150 ≥940 10*M24*1.5 335 1850 518445
32222 ≈2256 460 8.50V-20
Inboard Drum Axle ZY-A1049 25 420*220 354 150*150 ≥940 10*M24*1.5 335 1850 30222
32222 ≈2270 490 8.5V-20
Characteristics of the products as follow:
1. Specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. high quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. high performance premiun non-asbestos brake linings, extend service life
4. Easy fir ABS installation
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. New tight fit hub cap have O rings, high property for sealing
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintance.
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims
9.Through ISO9001:2000 certification and ISOTS16949 we faithfully follow the stipulations of this standard so as to guarantee
high product quality.
