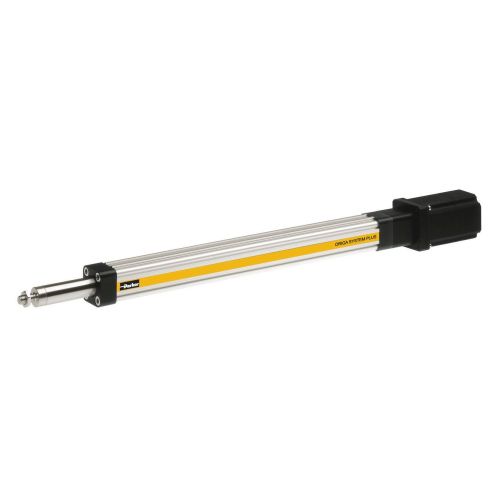

TRAPEZOIDAL SCREW DRIVEN ELECTRIC CYLINDER

Offering thrust forces to 1600N, strokes to 0.5m and an ISO conforming piston rod end, the OSPE32-STR trapezoidal screw rod-style linear actuator is suitable for intermittent applications and offers self-locking plus excellent slow speed characteristics
The OSP-E..STR trapezoidal screw electric linear actuators, with internal plain bearing guide and extending piston rod, are suitable for intermittent duty applications and offers self-locking plus excellent slow speed characteristics
OSPE32-STR Electric Cylinders - Performance Characteristics :
• Actuator Size : 32 (piston rod thread to ISO 6431)
• Thrust Forces : up to 1600 N
• Stroke Lengths : up to 500 mm
• Speeds : up to 0.1 ms
• Screw Lead : 4 mm
• Typical Repeatability : ± 0.5 mm
• IP54 Rated
• Diverse range of accessories and mountings
• Dovetail grooves for mounting accessories
• Special versions on request
OSPE32-STR Electric Cylinders - Advantages :
• Accurate path and position control
• High force output
• Self-locking
• Excellent slow speed characteristics
• Easy installation
• Low maintenance
• Ideal for level regulation, lifting and other applications with intermittent operations
