Traveller School Van

Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

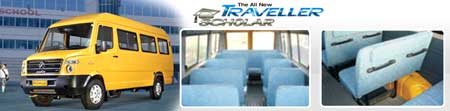

We offer spacious and relaxing traveller school van that is high on demand these days. We supply these vans to various schools as per their need and necessities. We purchase the traveller school van from reliable sources. The company focuses on the comfort level of the client with best services offered to them.

View More Details

Send Enquiry

Company Information

Tempo Automobiles Pvt Ltd

Rama Road, Delhi

View Number

Member Since 15 Years
Nature of Business Retailer
Year of Establishment 1987

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Special Features

Spacious
Comfortable seats
Grab handle
Chin guard

Provided For

Long journeys
Schools

Specifications

Features	Common Specifications	Traveller School Van
Engine
Model	TD 2650 FTI, TD-2650 FTI (BS-III)	√
Type	4 Cyl DI, TCIC	√
Emission Compliance	BS III	√
Displacement	2596 CC	√
Max.Torque	195Nm/1800-2000 RPM	X
Max.Torque	215 Nm/1800- 2000 RPM	√
Max.Output	75 HP @ 3200 RPM /	√
Max.Output	80.4 HP @ 3200 RPM	√
Type	Synchromesh	√
No of Gears	5 Forward & 1 Reverse	√
No of Gears	(5th Gear is the Overdrive)	√
Transmission
Type	Synchromesh	√
No of Gears	5 Forward & 1 Reverse	√
No of Gears	(5th Gear is the Overdrive)	√
Axles
Front	Dead Rigid - I-Beam (Reverse Elliot)	√
Rear	Live Rigid	√
Suspension
Front	Semi Elliptical Leaf spring with hydraulic telescopic shock absorbers & Anti roll bar	√
Rear	Semi Elliptical Leaf spring with hydraulic telescopic shock absorbers	√
Steering
Type	Mechanical	√
Turning Radius	6.5 metres	6.5 / 7.25 metres
Brakes
Service Brakes	Hydraulic - Dual circuit (Vacuum Assisted)	√
Front	Four piston ventilated disc brakes with wear indicator6065 / 6766	√
Rear	Drum brakes
Parking Brake	Mechanical on rear wheels	√
Wheels & Tyres
Size	215 / 75 R 15	√
Dimensions (mm)
Wheel Base	3700 / 4020	√
Overall Len	6065 / 6766	√
Overall Width	1975 / 1975	√
Overall Height	2550 / 2550	√
Overhang front	900 / 900	√
Overhang Rear	1465 / 1846	√
Ground Clearance	190 / 190	√
Fuel Tank Capacity	70 Litres	√
Weights (kg.)
Max. Permissible FAW	1490 / 1490	1600 / 1600
Max. Permissible RAW	2020 / 2020	2210 / 2500
Max. Permissible GVW	3510 / 3510	3810 / 4100
Seating Capacity
Seating Capacity	1 + D / 1 + D	17 + D & 20 + D
