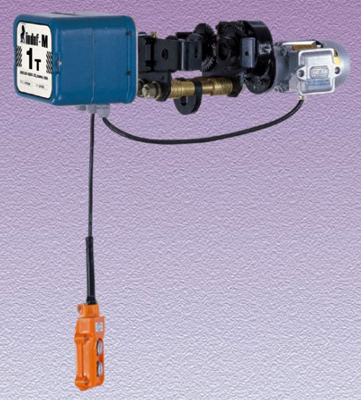

Travelling Trolly

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Anti drop and de-railing guide • Precision-machine runners mounted on sealed ball bearings • Available in three basic range with further adjustment of flange width • Anti corrosive powder coated finish • Non standard speeds, dual speeds available on request • Compatible to VVVF designs

View More Details

Send Enquiry

Company Information

Chakraborty Lifting Equipments Co.

Alipore, Kolkata, West Bengal

View Number

Member Since 15 Years
Nature of Business Retailer
Year of Establishment 1978

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

					Electric
Capacity	MT				1		3
Inside of wheel flanges mm		Range 1			58-150		90-160
		Range 2			150-210		160-220
		Range 3			210-305		220-305
A Seat of susp. plate to runner tread mm		Range 1 & 2			89		110
		Range 3			129		155
B Runner tread diameter		mm			65		90
C Runner tread width		mm			25		30
D Runner centres		mm			128		157
E Underside of runner to suspension plate					28		28
F Underside of runners to top of control panel mm					120		120
G Beam flange to Panel end mm					287		287
H Underside of runner to top of motor					138		138
J Track centre line	Range 1		track			58-150	90-160
and to motor			widths J	mm		350-390	360-395
	Range 2		track			150-210	160-220
			widths J	mm		390-420	395-425
	Range 3		track			210-305	220-305
			widths J	mm		420-470	425-470
K Depth of plate	Range 1,2&3			mm		21	34
L Overall length	mm					238	350
M Underside of runner to flange (push) mm						75	105
N Underside of runner to gear tip (geared) mm						90	115
Minimum radius of track curve mm						2000	2500
Electric travel weight in kg	Range 1					22	31
	Range 2					23	33
	Range 3					26	38
