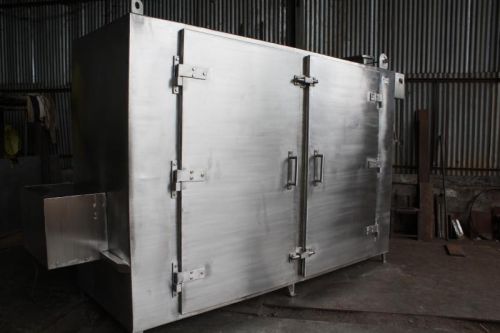

Tray Dryer, Finishing : Polished

 tray dryer (pbxtd) is specially designed for pharmaceutical, food, chemical, paint and textile industries. It is an electrical/steam heated thermostatically controlled hot air oven fitted with time switch to facilitate working day and night. Pbx drying ovens are well accepted for fast economical drying of granules, effervent salts and other materials. Uniform air circulation, controlled temperature, sturdy construction and large working space are the valuable features of the oven. A highly effective re-circulating air system provided by belt driven axial fan. The filtered air is heated and re-circulated with fresh air.

salient featrues / moc :

• inner in ss306
• outer in ss304
• trays in ss316
• trolly and steam coil in ss316
• silicon door gasket
• flp motor and electricals
• digital temperature indicator(flp)
• door fitted with strong hinges and special lock arrangement
• 10 micron air filter at inlet
• adjusttable air outlet damper
• explosion vent for safety
• constructionand finish as per cgmp standards.

optionals:

• outer in ss316
• ss316 trays in 18g(without back folding)
• self operating temperature controller(sotc) range 40-100°c
