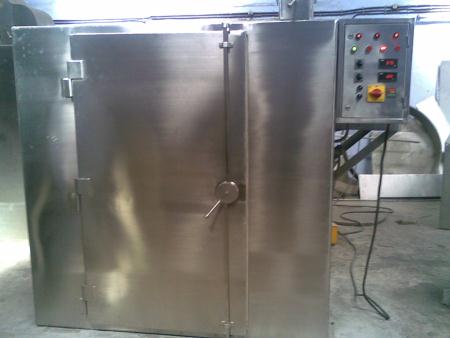

Tray Dryer, Frequency : 50 Hz

 Drying ovens are fabricated in double walled M.S, S.S. Sheet construction. This is mounted on a rigid steel frame work. Glass wool, mineral wool, Rock wool, is used for insulation which is placed in the gap of two layers.

Steam radiator or heaters are used and the air is passed through it which are totally enclosed. This hot air is then circulated in here by me of a fan fitted on the side of the oven and driven by a suitable electric motor.

The unit is also provided with air inlet, air filter adjustable air outlet, self  locking insulated door etc, A control panel is provided in front of the oven which consists of , Digital Temperature Controller, P.T 100 Sensor, Ameters, Push button on-off operation, indicating lamps, earthing bolt etc. duly interconnected suitably.

The ovens are available in a vast range i.e to accommodate the trays from 12 to 192 Nos., The trays are made S.S or Aluminum sheets. M.S. or S.S. wheeled trolley of standard size will be provided.
M.S. Unit is painted from outside with synthetic epoxy paint. If required ovens can also be supplied in flame proof construction.

S.S.unit is buffed for inside mirror & out side mat finish
Available in – 6, 12, 24, 48, 96, 192, Tray
Capacity Model (STD/ GMP)
Type: - Electrical / Steam Heating arrangement
Trays :- In S.S.304, S.S.316, S.S.316L, Aluminum, P.P.etc
