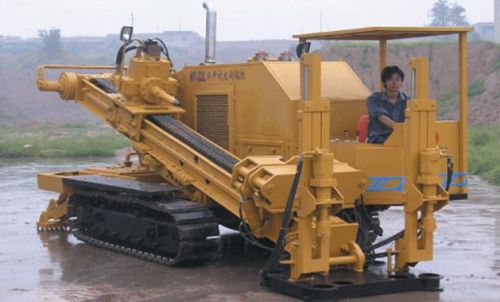

Trenchless Directional Drilling Rig, Brand Name : scme

We are offering Trenchless Directional Drilling Rig. Ht-32l trenchless directional drilling rig adopts steel track with rubber block .the machine is mounted on a diesel engine, a drill frame, a mud pump, and a rotray head and convenient to move in urban areas. It also used widely in the city or outside trenchless pipe laying. Hydraulic systerm adopts pilot control for remote and minimal operating force.
Characteristics:
the traveling sheave carriage under the rotary power head makes double pushing/pulling force than provided by hydraulic motors. As a result, it saves about 25 horsepower and to be longer life for chains
two-speed carriage and rotary power head is in favor of mixing soil in the hole and improving the success rate and working efficiency
heavy-duty hy draulic rotary power head adops rock drill head, moreover, it is more suitable for dry or wet drilling ang improves the length of life in wet drilling
the carriage with rollers reduces the friction and improves the life
hydraulic auger anchor device saves labor force and increases efficiency
exclusive slide drill frame provides a range of setup angles for varying jobsites requirment
the diesel engine and main hydraulic parts adopt imported products or famous domestic companies
optional equipment
mud mixing systerms
it equipped with 100hours high energy cell in order to complete long distance drilling
specification:
specifications unit 32 l
diesel engine power kw 132
max. Spindle torque nm 13000
max. Pullback force kn 320
max. Thrust force kn 320
spindle speed rpm 0-100
entry drill angle ° 0-20
max. Mud flow rate l/min 250/320
max. Fluid pressure mpa 10
drill rod(dia.×length) mm 73×3000
feed stroke mm 3000
guide extension mm 800
diameter of reamer mm 260-960
max. Paving length m 200-600
rig size(l×w×h) m 7.5×2.2×2.6
weight kg 9200
