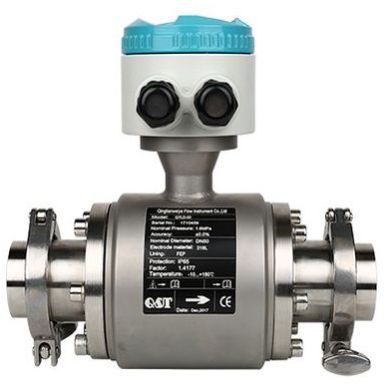

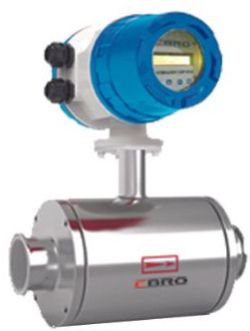

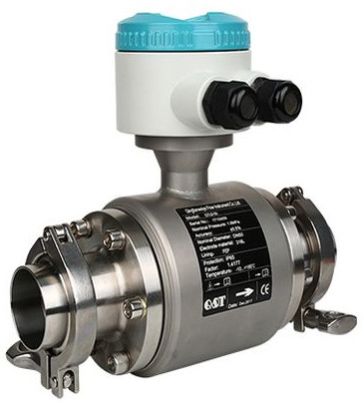

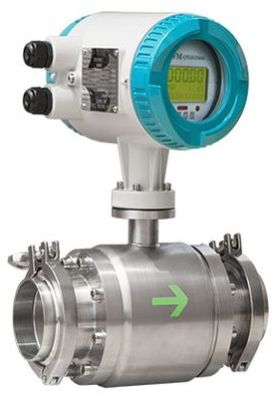

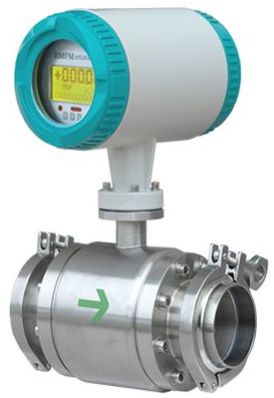

Tri-clamp Electromagnetic Flow Meter

Tri-clamp electromagnetic flow meter is a kind of volume flow meter. Tri-clamp electromagnetic flow meter is made of stainless steel, which can be easily disassembled and cleaned quickly, so it is not easily polluted during use, and can effectively prevent the accumulation of measuring fluid residues in the measuring tube.

Wafer electromagnetic flow meter working: The product is based on Faraday’s law of electromagnetic induction, used to measure the conductance greater than 20 μS/cm volume of conductive liquid flow. In addition to measuring the general volume of conductive liquid flow, but also can be used to measure strong acid, alkali and other strong corrosive liquids and mud, pulp, etc.

Advantages :-

Tri-clamp Electromagnetic Flow Meter Advantages and Disadvantages:

Tri-clamp electromagnetic flow meter is easy to be installed and dismantled. It adopts Harmless food grade stainless steel as raw material, so it can touch with food directly.

Stainless steel material has long service life, and SS316 is a kind of anti-corrosive stainless steel, so it can be used to measure most of drinks. It has small size and light weight so it can save your freight fee.

It has multiple output signals for choose. It has current output and pulse output for connecting with PLC or other devices. And you can also read flow measurement by RS485/HART/Profibus.

Application

Tri-clamp electromagnetic flow meter is mainly used in drinking water, milk, ground water, jam, juice and other food & drink industries. It is also widely used in paper pulp, gypsum slurry because it can be cleaned easily.

It adopts harmless stainless steel material so it can measure food directly. And it can withstand high temperature steam disinfection.

Local display type can withstand -20-60 deg C temperature, remote display can withstand -20-120 deg C
