Triangular and Rectangular Notch Tank Apparatus

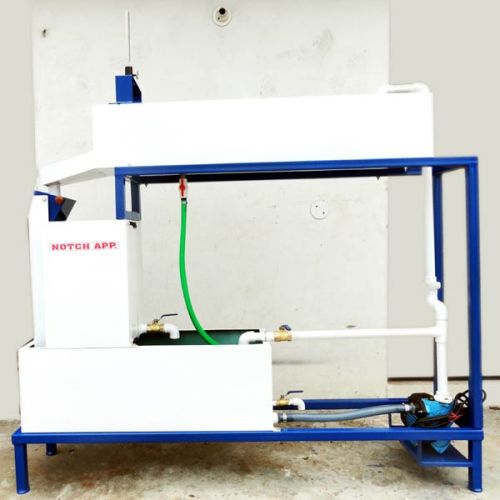

We offer Triangular and Rectangular Notch Tank Apparatus.
Notches are openings cut in metallic plates are used for the purpose of measuring the discharge in stream. This apparatus is used to measure the coefficient of discharge of notches of various shapes V-NOTCH OF ANGLE 60° RECTANGULAR Notch of 100x150mm
The apparatus consists of:
 A Centrifugal pump of 25mm x 25mm with Vi HP Motor (ISI Make)
 M.S Sump Tank 40 Ltr fitted with piezometer tube to measure the discharge. Damper is used to collect the water in M.S Measuring Tank for certain time.
 G.I pipe of internal dia 25.4mm (1") and Gunmetel ISI mark Control Valve and regulating valve are used to circulate water.
 Bye-pass line is also used to regulate the discharge. This apparatus consists of a rectangular tank of 80x20x20cm with rectangular opening at one end on which rectangular or V-Notch can be fitted with nuts.
A pointer scale is used to measure the level of water in the tank.
The tanks are well epoxy painted insided to prevent rust hence increase the life of tank.
Experimental capabilities:
 Determination of coefficient of discharge of :
 90°C notch.
 Rectangular notch.
