Contact SupplierCapacity : 40 ~ 100 KN

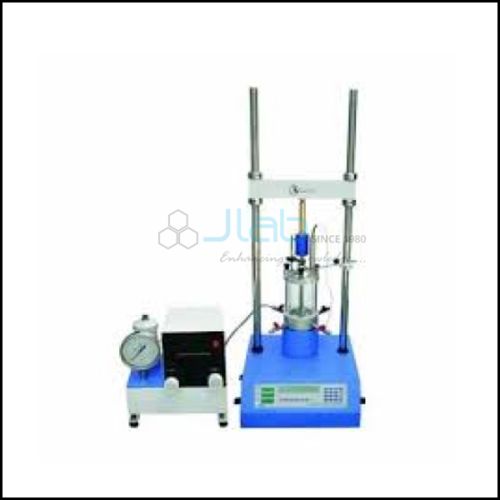

Type : Triaxial System
Application : Measuring soil strength, analyzing soil stability and providing data for construction projects.
Perform UU, CU and CD Triaxial tests
Specimen size : �61.8 x 125, ä 101 x 220 mm
Max. axial load : 70 ~ 100 KN
Lift speed range (mm/min) : 0.003, 0.006, 0.008, 0.012, 0.020, 0.030, 0.040, 0.050, 0.060, 0.070, 0.080, 0.090, 00, 0.400, 0.500, 0.600, 0.700, 0.800, 0.900, 1.000
Max. Stroke : 45 ~ 55 mm
Max. confining pressure : 2 � 3 Mpa
Max. back pressure : 0.6 � 1.5 MPa
Pore Water pressure : 0 � 2 MPa
Volume change range : 0 � 50 ml
Minimum division : 0.1 ml
Axial displacement range : 0 � 30 mm
