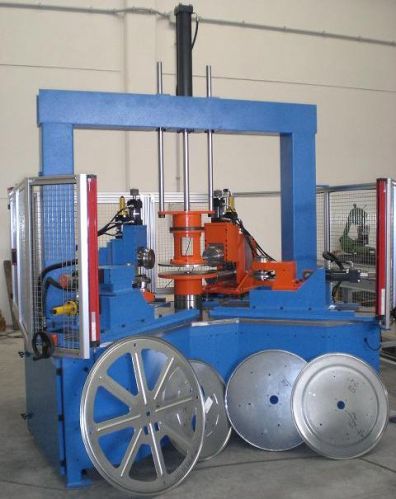

Trimming Machines, Brand Name : Sheet Metal Men, Certification : CE

Machine for working round and poligonal pieces with max diameter diagonal of 1600 mm.
It's possible to execute the following operations:
- internal external beading;
- horizontal vertical trimming;
- internal external flanging;
- inner outer curling;
- inward outward ribbing;
- threading;
- lock-seaming 3 thickness;
- lock-seaming 5 thickness.
Technical characteristics:
- max diameter or diagonal of the piece to work: 1600 mm.
- motor power: 15 kw with inverter.
- hydraulic presser ø80 standard stroke 800 mm.
- hydraulic ejector ø50 standard stroke 50 mm.
- n°4 hydraulic working units.
- touch-screen for programming.
- safety guards, made in aluminium, fixed on three sides with sliding doors in lateral and posterior parts.
- safety light curtain in front side.
