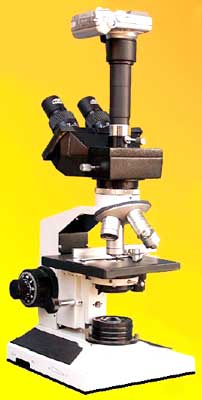

Our precisely designed to perfection Trinocular Coaxial Microscope is appreciated for high illumination power. Trinocular Trinocular Coaxial Microscope  offered by us is easy to operate, as it is available with technically superior as well as user friendly features. Today, we stand among the major Rotatable Trinocular Coaxial Microscope Exporters based in India.

Technical Specification

Head : Inclined Trinocular head
Body : Inclined Binocular Body, Rotatable through 360^o
Nose Piece : Perfectly centered bearing based, Quadruple resolving nose piece.
Mechanical Stage : Large stable base (120x 125mm) fitted with co-axial precision graduated mechanical stage for X and Y movement of slide upto 50mm x 75mm
Sub Stage : Abbe N.A.1.25 codenser, focussable with rack and pinion through 25mm continously visible iris diaphragm with built in swing out filter holder.
Anti Fungus Eye Pieces : Highest quality paired Huy.5x / 6x and WF 10x Eye Piece.
Focussing : Single Co-axial knob provided based on afour step gear reduction system for coarse and fine focussing for silk smooth operation.
Illumination : Fitted with built in base halogen light source; fitted with 6v-20W Halogen bulbs; On / Off Switch and light intensity regulator; complete with power cord and plug. Also a set of plano-concave reflector provided for day light use.
