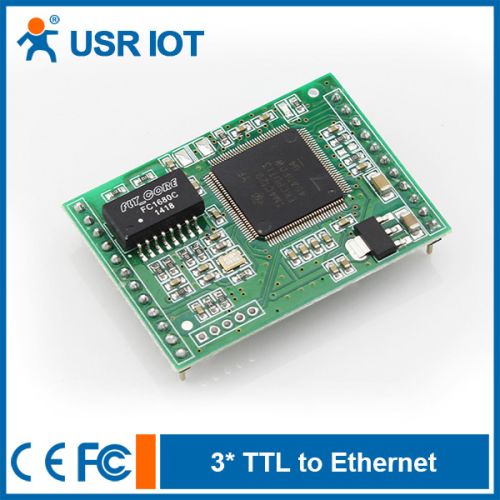

Triple Serial UART To Ethernet Module, Brand Name : USR

Triple Serial UART to Ethernet Module,Serial Server Module
Function features:
New Cortex-M4 kernel, industrial working temperature range(-40~85℃), elaborate optimization TCPIP protocol
stack, stable and reliable.
Support TCP Server, TCP Client, UDP, UDP Server, HTTPD Client,websocket, various of ethernet protocols.
Support virtual serial port, provide corresponding software.
Serial port highest baud rate from 300bps to 1024000bps(COM0 only max 256000bps).
wide voltage input, more applications.
Support DHCP, automatically access IP, can inquire the facility within network through the UDP broadcast
protocol(using software USR-TCP232-E45 Setup).
Supply the protocol for VIP customers
Provide PC TCPIP SOCKET programming example, VB, C++, Delphi, Android, IOS.
A built-in web page, also parameter setting via web, can customize web pages for users.
Can also set via UDP broadcast, provide the set up protocol.
Reload button, a key restore default Settings.
RJ45 status indicator light, RJ45 interface built-in isolation transformer, 2 KV isolation.
The global unique MAC address bought from IEEE, the user can define MAC address (please state when you make
order).
Support upgrade firmware via network.
Support visit IP and domain name at the same time
Support up to 8 link from client when act as TCP Server, same data will be send to all client.
Can modify http server port from default port 80 for module built-in http server.
Support Keepalive, detect a dead link quickly and make sure the connection more stable.
Product characters
Mechanical dimesion: (L×W×H): 44.45×31.75×15.4(mm) including RJ45 and connector;
PCB dimension(L×W): 44.45×31.75(mm);
5V3.3V power input,choose 1 input
3 * serial(3 * TTL)
TTL serial port, support hardware flow control
Operating Temperature: 0~75 °C (business version) -40-85°C (industry version)
Storage temperature: -40~85 °C
