Triplex Mud Pump

We are offering triplex mud pump ,

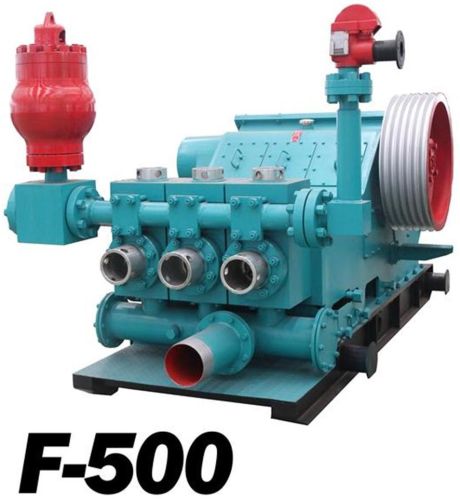

f-500 mud pump
technical specification
type triplex single-acting piston pump gear type herringbone gear
rated input power（kwhp） 375500 gear ratio 4.286:1
rated stroke per minute 165 lubrication forced& splashing
stroke length（mmin） 190.57.5" valve pot api-5#
inlet connection size 8"(203) outlet connection size 4"flange 5000psi
weight 977021540 overall dimensions (l*w*h) 365827092231mm
strokes
per
minute
liner dia（mm） φ170 φ160 φ150 φ140 φ130 φ120 φ110 φ100
rated pressure（mpa） 9.4(1365) 10.6(1540) 12.1(1750) 13.9(2010) 16.1(2335) 18.9(2740) 22.5(3260) 27.2(3945)
rated power displacement(ls)
kw hp
170 384 515 36.75(582) 32.56(516) 28.61(453） 24.93(395） 21.49(340) 18.31(290) 15.39(244) 12.72(201)
165 373 500 35.67(565) 31.60(501) 27.77(440) 24.91(383) 20.86(330) 17.77(281) 14.93(236) 12.34(195)
150 339 455 32.43(514) 28.73(455) 25.25(400) 21.99(348) 18.96(300) 16.16(256) 13.58(215) 11.22(178).
