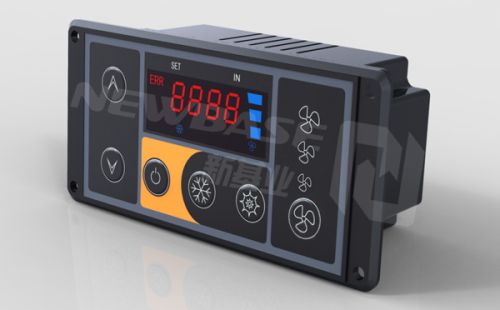

Truck AC Control Panel

Description
CG220209 digital air conditioner controller applies to internal climate control for construction vehicle, truck, van, etc
Main function
Cooling YES
Heating YES
Ventilation NO
Fresh Air NO
Power lost memory YES
Error alarm YES
Auto over-voltage protection YES
Air flow regulation 3 grades
Interior temp display YES
The shift function (check by manual operation)
-Compel cooling
-Check defrost temp
Application:
FOTON,CANCOO
Technical Data
Power supply DC12V24V
Power consumption 2 W
Current Max.200mA
Dimensions 132X62X54mm
Input 1) Interior temp. sensor
2) Defrost sensor
3) Pressure sensor
4) AC power(generator)
5) ACC(battery)
6) Backlight power
Output 1) Fan high
2) Fan medium
3) Fan low
4) Compressor clutch
5) Heating
Display LED
Ambient temperature -30℃—80℃ 5%－95%RH Non-condensing
Storage temperature -10℃—70℃ 5%－95%RH Non-condensing
Display precision Temp value. Dual digit display, Accuracy,1 °c
Protection IP43
EMC EN50081&EN50082-2
Security level Applied to EN61010-II, Pollution degree: II
Weight 170g
Dimension drawing
Advantage
a. Full function: Heating, cooling, fan speed control, Air flow angle control, Fresh air ventilation
b. Standard product, fast delivery
c. Mature technology, stable design
d. Program customer design
e. Custom LOGO
