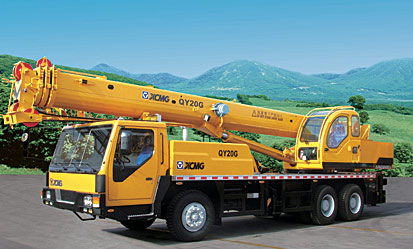

Truck Crane, Brand Name : XCMG

We are offering 20 Tons Xcmg Truck Crane. Wide cab
four-segment dodecagon boom
single cylinder luffing and double-winch
manual mechanical operation
cab
spacious and luxury streamline cab
dodecagon boom system
constantly optimize the boom section, which can completely release the carrying capacity of the plates, and makes the lifting more reliable and safer.
Compact boom head
extend the jib length, which can extend the working radius to the most.
Engine
reasonable matching, energy efficiency and environmental protection, and strong power meet the economical running of the required power.
The 5th outrigger
extend the lifting space and scope, greatly improving the lifting capacity of the front part.
dimension
unit
qy20g
overall length
mm
12000
overall width
mm
2500
overall height
mm
3300
weight
　
　
total weight in travel
kg
26020
front axle load
kg
7000
rear axle load
kg
19020
power
　
　
engine model
　
　
engine rated power
kw/(r/min)
　
engine rated torque
n.m/(r/min)
　
travel
　
　
max. Travel speed
km/h
75
min. Turning diameter
m
20
min. Ground clearance
mm
270
approach angle
°
16
departure angle
°
13
max. Grade ability
%
35
fuel consumption for 100km
l
~35
main performance
　
　
max. Rated total lifting capacity
t
20
min. Rated working radius
mm
3000
turning radius at turntable tail
m
3.38
max. Lifting torque
kn.m
833
base boom
m
10.1
fully extended boom
m
31.6
fully extended boom+jib
m
39.9
longitudinal outrigger span
m
4.9
lateral outrigger span
m
5.4
working speed
　
　
boom luffing time
s
75
boom full extension time
s
95
max. Swing speed
r/min
3
max. Speed of main winch (single rope)
m/min
100
max. Speed of aux. Winch (single rope)
m/min
100
