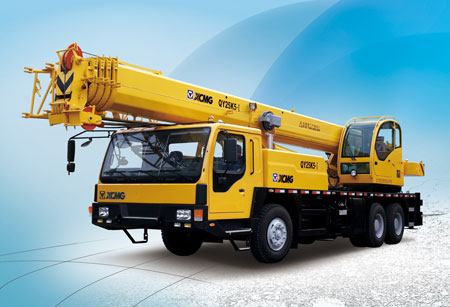

Truck Crane, Brand Name : RP

We are offering truck crane.
Feature:-
1.leading performance: the boom length in full extension is 39.5m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.
2.the unique u boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.
3.the unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable.
4.the control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.
5.six unique technologies supply the quality assurance, and make the products keep a high value.
6.the innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
7.the unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
8.eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
9.adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
10.the torque limiter adopts colorful lcd display, realizing the intelligence of the failure diagnosis. E precision is ahead of the industry.
11.the humanity design makes the cab and control cab more spacious, and easy to operate.
six unique manufacturing technologies ensure the high quality.
dimension
unit
qy25k5-i
overall length
mm
12300
overall width
mm
2500
overall height
mm
3350
weight
　
　
total weight in travel
kg
31750
front axle load
kg
6550
rear axle load
kg
25200
power
　
　
engine model
　
sc8dk280q3
wd615.329
engine rated power
kw/(r/min)
206/2200
213/2200
engine rated torque
n.m/(r/min)
1112/1400
1160/1400
travel
　
　
max. Travel speed
km/h
80
min. Turning diameter
m
22
min. Ground clearance
mm
260
approach angle
°
16
departure angle
°
13
max. Grade ability
%
40
fuel consumption for 100km
l
≈37
main performance
　
　
max. Rated total lifting capacity
t
25
min. Rated working radius
mm
3000
turning radius at turntable tail
m
3.065
max. Lifting torque
kn.m
961
base boom
m
10.4
fully extended boom
m
39.5
fully extended boom+jib
m
47.8
longitudinal outrigger span
m
5.14
lateral outrigger span
m
6
working speed
　
　
boom luffing time
s
68
boom full extension time
s
150
max. Swing speed
r/min
2.5
max. Speed of main winch (single rope) (no load)
m/min
125
max. Speed of aux. Winch (single rope) (no load)
m/min
125
