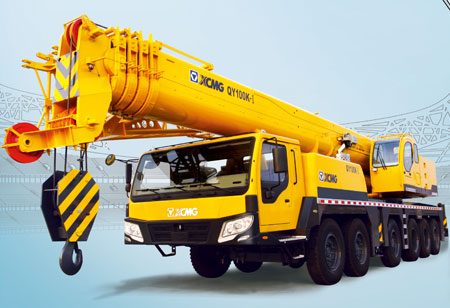

Truck Crane, Brand Name : XCMG

We are ofering truck crane.
feature:-
•the innovative jib system adopts embedded block, plug-in boom head and international advanced u section jib, which has excellent lifting performance and safe and reliable lifting work.
•the unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
•eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
•the torque limiter adopts colorful lcd display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
•adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
•the humanity design makes the cab and control cab more spacious, and easy to operate.
•six unique manufacturing technologies ensure the high quality.
•the working condition expands twice. Newly add 5t counterweight.
dimension
unit
qy100k-i
overall length, width, height
mm
15600×3000×3850
wheel base
mm
1420+2420+1800+1420+1505
weight
　
　
total weight in travel
kg
54900 58000
axle load
　
　
axle 1
kg
7500 7500
axle 2
kg
7500 7500
axle 3
kg
8300 10000
axle 4
kg
12000 12500
axle 5
kg
12000 12500
axle 6
kg
7600 8000
power
　
　
engine rated power
kw/(r/min)
360/1800 (306/1900)
engine rated torque
n.m/(r/min)
2200/1300 (2010/1200)
engine rated speed
r/min
1800 (1900)
min. Ground clearance
mm
310
travel
　
　
approach angle
°
20
departure angle
°
14
braking distance (at 30km/h)
m
≤10
max. Grade ability
%
40
min. Turning diameter
m
24
fuel consumption for 100km
l
70
main performance
max. Rated total lifting capacity
m
100
min. Rated working radius
　
3
turning radius at turntable tail
　
　
counterweight
mm
4200
aux. Winch
mm
4590
max. Lifting torque
　
3450
base boom
kn.m
3450(4m×88t)
fully extended boom
kn.m
1950(24m×7.1t)
fully extended boom＋ jib
kn.m
1230(19.2m×6t)
outrigger span (full extension)
　
　
longitudinal
m
7.56
lateral
m
7.6
lifting height
　
　
base boom
m
13.5
fully extended boom
m
50.9
fully extended boom＋ jib
m
70.4
boom length
m
13.5
fully extended boom
m
51
fully extended boom＋ jib
m
51+18.1+4
working speed
　
　
jib setting angle
°
0、15、30
boom luffing time
s
75
boom
　
　
boom telescoping time
　
　
full extension
s
160
max. Swing speed
r/min
2
outrigger extension/retraction time
　
　
outrigger beam in extension/retraction
s
25/15
outrigger jack in extension/retraction
s
45/25
lifting speed (single rope, layer 4)
　
　
main winch
m/min
105
aux. Winch
m/min
104.
