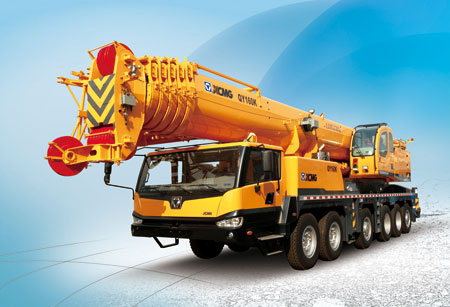

Truck Crane, Brand Name : XCMG

We are offering truck crane.
Qy160k is the truck crane with the largest tonnage in the world. The boom length and lifting capacity is a great breakthrough in the 6-axle truck crane. The full extension length of the boom is 62m, and can be equipped with 28m vice boom. The maximum counterweight is 50t. The outrigger span is 7.8×8.0m, which can realize 360°full turn with the same lifting capacity, featuring large working scope and strong lifting capacity. The maximum travel speed is 80km/h, and the maximum grade ability is 40%, having excellent travel performance.
dimension
unit
qy160k
overall length
mm
　
overall width
mm
　
overall height
mm
　
weight
　
　
total weight in travel
kg
54900
front axle load
kg
　
rear axle load
kg
　
power
　
　
engine model
　
om460la.e3a/1
engine rated power
kw/(r/min)
360/1800
engine rated torque
n.m/(r/min)
　
travel
　
　
max. Travel speed
km/h
80
min. Turning diameter
m
26
min. Ground clearance
mm
300
approach angle
°
20
departure angle
°
14
max. Grade ability
%
40
fuel consumption for 100km
l
75
main performance
　
　
max. Rated total lifting capacity
t
160
min. Rated working radius
mm
　
turning radius at turntable tail
m
　
max. Lifting torque
kn.m
5253
base boom
m
　
fully extended boom
m
61.4
fully extended boom+ jib
m
88.6
longitudinal outrigger span
m
7.8
lateral outrigger span
m
8
working speed
　
　
boom luffing time
s
　
boom full extension time
s
　
max. Swing speed
r/min
1.8
max. Speed of main winch (single rope) (no load)
m/min
110
max. Speed of aux. Winch (single rope) (no load)
m/min
