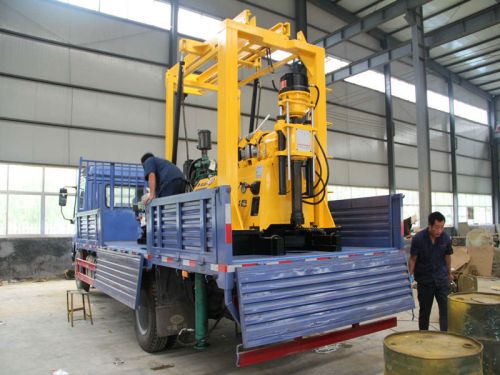

Truck Mounted Core Drilling Equipment, Brand Name : HanFa

We are offering truck mounted core drilling equipment.
Truck mounted core drilling equipment
1. Truck mounted ,easy to move
2. Hydraulic, easy to operate, high efficiency
3. Welco
hft-3 truck mounted core drilling equipment
features
1. Multi-use for water well drilling, core drilling, geothermic well, general investigation, etc.
2. Truck-mounted, easy to move.
3. High efficiency for shift device, big torque and powerful mud pump.
4. Durable and reliable. Its quality has been recognized by many users and almost need no repairing during using.
specifications of hft-3 truck mounted drill rig
unit machine
drilling depth
100/250/300/600m
drilling diameter
300/200/150/75mm
open hole diameter
300mm
end hole diameter
75mm
diameter of drilling rod
60mm
drilling angle
90° to 65°
rotary spindle
spindle forward speed
57 to 1024r/min
spindle reverse speed
45 to 212r/min
spindle stroke
560mm
spindle inner diameter
96mm
spindle lifting capacity
6000kg
main winch( driven by hydraulic system)
single line lifting speed
0.515, 0.894, 1.421, 1.948 m/s
hug floodgate belt width
90mm
wire rope diameter
14mm
hoist single line lifting capacity
4500kg
roller diameter
200mm
roller capacity
30m
minor winch(driven by hydraulic system)
roller diameter
140mm
wire rope diameter
6mm
roller capacity
450m
mud pump
model
horizontal triplex bw-250 mud pump
displacement
250l/min
work pressure
80kg/cm2
water inlet caliber
75mm
water exit caliber
50mm
gear oil pump
duplex gear oil pump
f532/f314
front displacement
50l/min
pressure of front displacement
20mpa
rear displacement
16l/min
pressure of rear displacement
20mpa
power of drill rig
diesel engine
4105 27hp
electric motor
y180l-4 22kw
truck chassis
model
ca1083k28l4a
drive form
4 x 2
weight of complete machine
9550kg
transport size(l x w x h)
9500 x 2500 x 3540mm
work size(l x w x h)
7700 x 2500 x 10500mm
engine of truck
engine no.
ca4df3-13e3
displacement/power
4752ml/96kw
discharge
gb3847-2005
