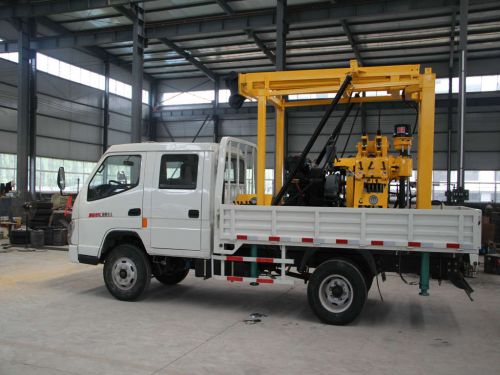

Truck Mounted Drilling Rigs, Brand Name : HanFa

We are offering truck mounted drilling rigs.
Detailed product description
hft200 truck mounted drilling rigs
1.30-200m depth
2.for complex stratums
3.practical&economical
hft200 truck mounted drilling rigs
1,drilling depth can reach 30-200m
2,steels quality is good, torque is large
3,easy operation, free-maintaining
4,for various complex strutam, such as pebble bed, aggregate bed.
5, saving money, compact construction, easy moving
6, for geological exploration, exploration of high building construction, rivers construction, civil water well
7, it can do standard penetration test, use auger drilling and sampling with solid stem and the triple rod jet grouting.
item
unit
parameter
structure
rotary
power
kw
15
working state overall dimension
length
mm
5995
width
mm
2060
height
mm
7500
structure weight
kg
1500
drilling depth
m
200
hole diameter
mm
75-300
driving lever
mm
53/59x4000
drill rod
mm
50
drill bit
mm
75-300
vertical shaft speed
r/min
64,128,287,557
winch
roller diameter
mm
140
winding speed of single cord
m/s
0.12,0.22,0.49,0.95
lifting power of single cord
kn
24
content of roller
m
35
steel wire diameter
mm
13
drill tower
rated load
t
5
effective height
m
6
tower leg specification
mm
160x120x6
faucet
max lifting power
kn
50
rubber tube diameter
mm
50
mud pump
model
bw160
displacement
l/min
160
working pressure
mpa
1.3
reciprocating frequency
number/min
165
truck
model
zb1043lsds
engine type/power
ln4d27e3/66kw
seat
3+3
