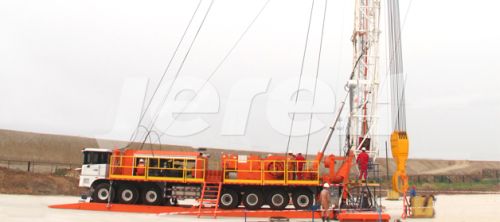

Truck Trailer Mounted Drilling Rig

We are offering truck trailer mounted drilling rig.
features
as a world leading manufacturer of oilfield equipment, jereh is dedicated to providing cutting-edge, reliable and customized drilling equipment including truck-mounted, trailer-mounted and marine drilling rigs (≤1000hp) and skid-mounted engine-driven land drilling rig (≤2000hp) with integrated solutions to achieve automatic control, easy and quick mobilization and cost saving.
advantages & features• intelligent control system
jereh’s intelligent control system adopts plc as the core and integrates drilling instruments and electrical control units to collect real-time signals for intelligent control of the rig and space saving in the driller room.
• drawworks
the drawworks adopts single gear transmission with two-gear variable speed and disc and dynamic brakes. Automatic bit running can be achieved through both the main motor and the emergency motor. It is capable of real-time monitor of the drilling operation as well as trip in and out.
• modularization designs
jereh has made great optimization and innovation to this rig design for the most humanized and modularized considerations. For example, thanks to this modularized design and quick connect of the hydraulic, pneumatic and electrical systems between different modules; time for rig transportation and installation has been greatly reduced.
specifications
model zj10 zj15 zj20 zj30 zj40
max. Hook load 253,000 lbs (1,125 kn) 303,500 lbs (1,350 kn) 330,500 lbs (1,470 kn) 404,600 lbs (1,800 kn) 505,800 lbs (2,250 kn)
drilling depth
(4-12” drill pipe) 4,900 ft (1,500 m) 6,500 ft
(2,000 m) 8,200 ft (2,500 m) 9,800 ft
