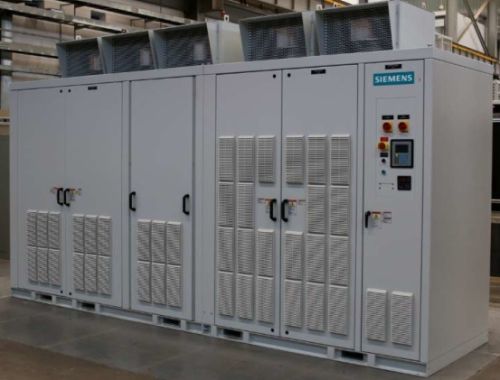

True Medium Voltage Drive

multi level h-bridge technology, no output transformer, true medium voltage drive. modular draw -out type power cell desig enables ease of maintenance. sinusoidal multi -level output waveform suitable for any standard induction motor with service factor 1.0 or higher. high input power factor. high efficiency : system efficiency of 96.5-97% including input transformer. up to 54 pulse rectification, exceeds ieee 519 specification, no harmonic filters required. unique feature of cell bypass & cell redundancy provides inbuilt redundancy in power section for all critical loads. advanced cell bypass with neutral phase point shift. permits motor cable length up to 2 km. highest input voltage supported – 33kv highest output voltage supported – 13.8kv
