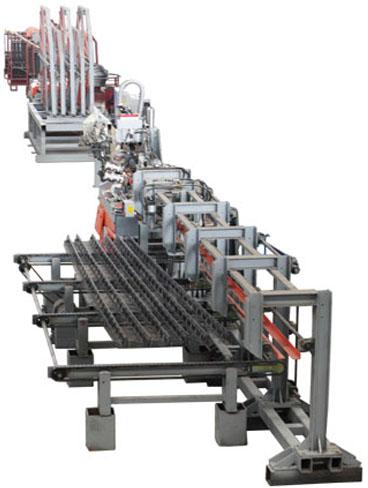

Contact SupplierWe are offering truss girder welding machine (sjl300a).
Lattice girder welding line, produced by jianke-master of wire processing equipments, were extensive used for railway, construction industry, etc.
automatically finished: pay-off, straightening, bending, welding, measuring and cutting, has outstanding features of best weld quality, high speed, saving labor and with high efficiency.
Model sjl300t-18 sjl320t-36
girder height 70-320mm 70-320mm
upper&lower 5-12mm 5-12mm
zig-zig 4-7mm 4-7mm
stroke 200mm 400mm
max. Procution speed ≥16mmin ≥32mmin
shear mode hydraulic type hydraulic type
trnsmission mode ac servo motor ac servo motor
weld mode pneumatic type pneumatic type
shear mode plc+display plc+display
power supply 200 kva 385kva
overall measure 48x6x4.415m 52x6x4.415
application software optional
