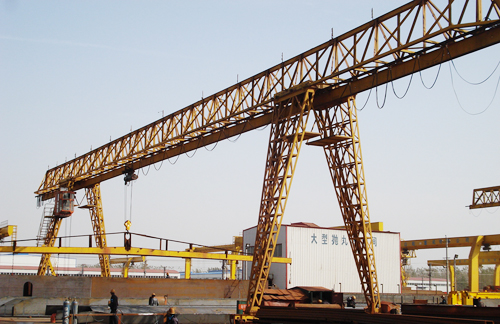

Trussed Type Single Girder Gantry Crane

Trussed type single girder gantry crane:
specifications of trussed type single girder gantry crane
1.lifting capacity : 1-20t
2.span: 2.5m to 37.5m
3.lift height: 3m to 40 m
4.working duty: a4(m4).
5.ce, tuv, gost certificate, top quality
features of trussed type single girder gantry crane
single girder gantry crane is widely used for material handling. Single girder gantry crane of capacity below 16t usually consist of girder, legs, ground end carriage, and electric hoist.this crane consists of girder, legs, ground end carriage, and electric hoist.
Motors:the motors are used specially crane duty suitable for frequent starting, reversing & braking in accordance with china national standards. Motors are totally enclosed in dust proof construction , sq. Cage motors with integrated safety brakes, protection for hoisting, ct & lt motions.
Brakes: dual-disc brakes with features like automatic braking on power failure (fail safe).
gear box: the entire gear boxes are made of accurate hob cut helical spur gears & pinions having hardness 250 to 350 bhn made from carbon alloy steel. All gears & pinions running on antifriction type ball roller bearings in totally enclosed oil bath giving constant splash lubrication. The helical spur gear designed for adequate strength and optimum wear resistance for smooth operation & long life
electrical panel: modular design, ease to install and maintain, reliable operation, fuse less circuitry, ducted wiring and compact terminals. Motor overload protection to prevent overloading.
Limit switch:safety limit switches for stoppers will be provided to prevent over traveling in all motions.
painting:two coats of primer before assembly & two coats of synthetic enamel after testing.
Other features:
· wireless radio remote control
· shrouded dsl system for power feeding
· flameproof
· cabin operated
