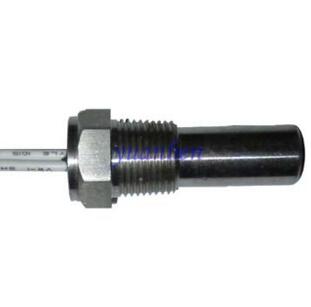

TS-234 Magnetic Temperature Switch

We, being a customer centric organization, make sure that the transactions are carried out by the professionals so as to avoid any kind of confusion. We sternly maintain payment records for the satisfaction of our clients. Safety of the products is the prime concern of the organization. Thus, we store the entire lot in a capacious and well-structured warehouse till the delivery of the orders.

Description

• The magnetic temperature switch is also named magnetic switch, is one new type switch, which is usually applied in many fields as electromechanical equipments, automobile and household appliance to control the temperature .
• It can be mounted in liquid, paste, fluid and air environment.
• The operating Principle: based on the feature that the ferrite material phase transition around the Tc curie point, to control the circuit through the reed switches make or break at the specified temperature point, with the features of stable operating point, reliable, long service life, Vibration, damp proof, water proof, explosion proof.
• All the reed switches used are imported.

Features

• Stable and reliable performance, ±1 accuracy, no drifting;
• Waterproof, explosion proof and adapt to harsh environment.
• Operation temperature point can be customized between -30 125
• Personalized structure and electrical connecting method to satisfy different clients operating requirement.


Applications  : It is widely applied for the temperature control in fields as electromechanical equipments, automobile, air conditioning, automatic coffee machine and other household appliance.
Product Dimension

• It should be used far away from (ï15m) the high magnetic field 100GSïand high ferromagnetic material 1.2;
• Test by using big surge current load as incandescent light is not allowed;
• The temperature switches cannot be stacked up when test the operating temperature point before put into using.
