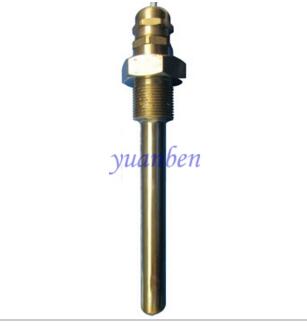

TS-381F Magnetic Temperature Switch

We are counted amid the quality-centric organizations and thus source the inputs only from the trustworthy sources. Also, these raw materials are checked against varied quality parameters. With us, clients can stay assured for secure, safe and hassle free transactions. Our payment procedures are easy to use and guarantee confidentiality of the transaction.

Description

• The magnetic temperature switch is also named magnetic switch, is one new type switch, which is usually applied in many fields as electromechanical equipments, automobile and household appliance to control the temperature .It can be mounted in liquid, paste, fluid and air environment.
• The operating Principle: based on the feature that the ferrite material phase transition around the Tc curie point, to control the circuit through the reed switches make or break at the specified temperature point, with the features of stable operating point, reliable, long service life, Vibration, damp proof, water proof, explosion proof.
• All the reed switches used are imported.

Features

• Stable and reliable performance, ±1â�� accuracy, no drifting;
• Waterproof, explosion proof and adapt to harsh environment.
• Operation temperature point can be customized between -30â��ï½ï¿½125â��
• Personalized structure and electrical connecting method to satisfy different clients operating requirement.


Applications : It is widely applied for the temperature control in fields as electromechanical equipments, automobile, air conditioning, automatic coffee machine and other household appliance.
Product Dimension

• It should be used far away from (ï15m) the high magnetic field 100GSïand high ferromagnetic material1.2
• Test by using big surge current load as incandescent light is not allowed;
• The temperature switches cannot be stacked up when test the operating temperature point before put into using.
