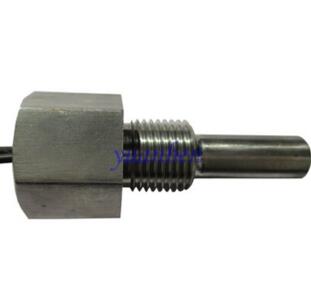

TS-416D Magnetic Temperature Switch

Based in Shanghai(China), We marked our presence in the nationwide market since our products are qualitative and cost effective. With our wide connectivity, trustworthy shipping facilities, we are flexible in delivering the product basket to the clientele within the dedicated time.

Description

• The magnetic temperature switch is also named thermal reed switch, is one new type switch, which is usually applied in many fields as electromechanical equipments, automobile  appliance to control the temperature .
• It can be mounted in liquid, paste, fluid and air environment. The operating Principle: based on the feature that the ferrite material phase transition around the Tc curie point, to control the circuit through the reed switches make or break at the specified temperature point, with the features of stable operating point, reliable, long service life, Vibration, damp proof, water proof, explosion proof.
• All the reed switches used are imported.

Features

• Stable and reliable performance, ±1 accuracy, no drifting;
• Waterproof, explosion proof and adapt to harsh environment.
• Operation temperature point can be customized between -30 125
• Personalized structure and electrical connecting method to satisfy different clients operating requirement.


Applications  : It is widely applied for the temperature control in fields as electromechanical equipments, automobile, air conditioning, automatic coffee machine and other household appliance.
Product Dimension

•  It should be used far away from (15m) the high magnetic field 100GSand high ferromagnetic materialï1.2
• Test by using big surge current load as incandescent light is not allowed;
