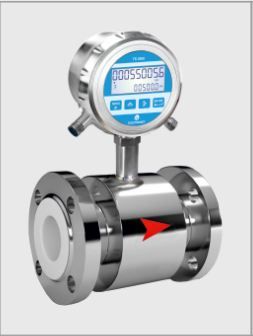

SS-316L Electrodes TS2000 CP Electromagnetic Flow Meter Switch

TS2000-CP – Compact Electromagnetic Flow MeterFeatures

• Compact full-bore electromagnetic flow meter

• Suitable for conductive liquids

• Typical accuracy of ±0.5% of M.V.

• Protection class: IP-68 (sensor + electronics)

• Supports line sizes from 08 NB to 100 NB

• Local LCD display for real-time flow monitoring

• Robust SS-316 construction for enhanced durability and corrosion resistance

The Electronet TS2000-CP is a compact, full-bore electromagnetic flow meter engineered for accurate and cost-effective flow measurement in pipelines ranging from 08 NB to 100 NB. Built with SS-316L electrodes and PTFE/PEEK insulation, it ensures superior corrosion resistance and long operational life.

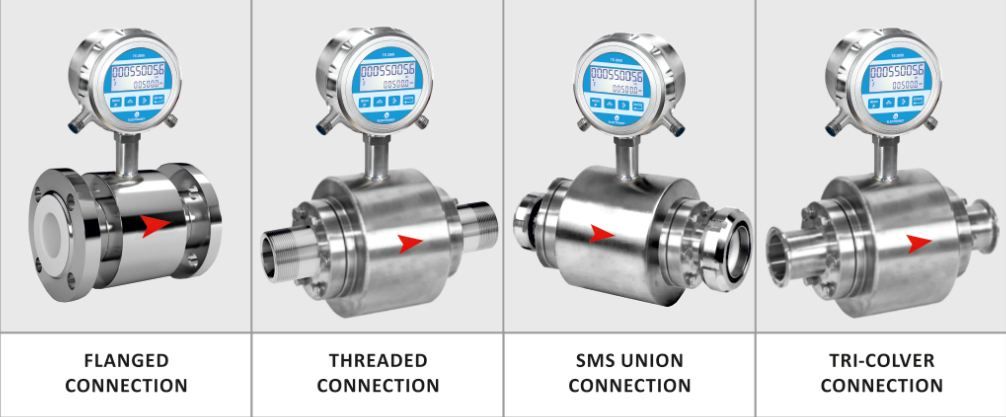

The flow meter offers versatile process connection options including Flanged, Threaded, SMS Union, and Tri-Clover, making it suitable for diverse industrial applications. With an IP-68 protection class for both sensor and electronics, it performs reliably even in submerged or harsh environments.

Designed for precision, durability, and ease of installation, the TS2000-CP is widely used in demanding process control applications across water treatment, chemical, food & beverage, and industrial utility systems.

• Measuring Principle: Electromagnetic

• Media: Conductive liquids

• Conductivity: > 5 µS/cm

• Viscosity: ≤ 200 cP

• Line Size: 08 NB to 100 NB

• Accuracy: ±0.5% of M.V.

• Response Time: 1 sec

• Display: Backlit LCD

  • 6-digit flow rate

  • 8-digit totalizer

• Process Temperature: up to 200°C

• Process Pressure: up to 16 kg/cm²

• Mounting Orientation: Inline horizontal / vertical

• Process Connections:

  • Flanged

  • Threaded

  • SMS Union

  • Tri-Clover

• Ambient Temperature: –20°C to +75°C

• Ambient Humidity: 5% to 95% RH (non-condensing)

• Output 1: 4–20 mA

• Output 2: Pulse (Open Collector Type) – Optional

• Alarm/Relay: 1 Relay Output – Optional

• Communication: RS-485 MODBUS RTU – Optional

• Electronics Protection: Weatherproof IP-68

• Sensor/Flow Tube Protection: Weatherproof IP-68

• Connector: M12

• Power Supply: 18–30 V DC

• Power Consumption:< 5 VA

• Electrodes: SS-316L

• Wetted Parts: SS-316

• Sensor Assembly: SS-316

• Electronics Enclosure: SS-316
