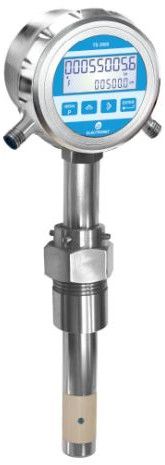

TS2000 IFM Insertion Electromagnetic Flow Meter Switch

Features

• Compact insertion-type flow meter

• Suitable for conductive liquids

• No pipe cutting or system shutdown required

• Supports line sizes from DN 40 to DN 300

• Typical accuracy ±0.5% of F.S.

• Protection Class: IP-68

• Local LCD display for real-time flow rate and totalizer

• Rugged SS-316 construction for long-term reliability and corrosion resistance

  Technical SpecificationsPerformance Characteristics

• Measuring Principle: Electromagnetic flow measurement

• Media: Conductive liquids

• Conductivity: > 5 µS/cm

• Viscosity: up to 200 cP

• Line Size: 40 NB to 300 NB

• Accuracy: ±0.5% of F.S.

• Response Time: 1 second

• Display: Backlit LCD (6-digit flow rate, 8-digit totalizer)

  Process Conditions

• Process Temperature: up to 200°C

• Process Pressure: up to 16 kg/cm²

• Mounting Type: Insertion type

• Process Connection: 1" BSP threaded

  Ambient Conditions

• Ambient Temperature: –20°C to +75°C

• Humidity: 5% to 95% RH (non-condensing)

  Output Signals

• Analog Output: 4–20 mA

• Pulse Output: Open Collector (Optional)

• Relay Output: 1 Relay (Optional)

• Communication: RS-485 MODBUS RTU (Optional)

  Protection Class

• Electronic Protection: Weatherproof IP-68

• Sensor / Flow Tube Protection: Weatherproof IP-68

  Electrical Connection

• Connector: M12 Connector

  Power Supply

• Voltage Range: 18–30 VDC

• Power Consumption:< 5 VA

  Material of Construction

• Electrode Materials: SS-316L

• Retractable Assembly: SS-316

• Wetted Parts: SS-316

• Sensor Rod: SS-316

• Electronics Enclosure: SS-316
