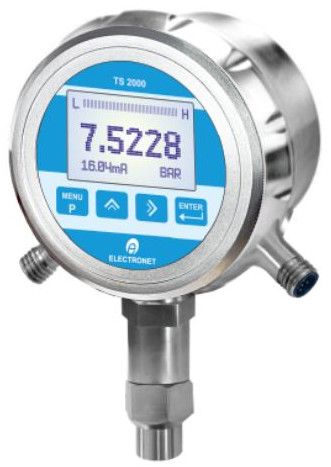

TS2000 SPT Pressure Transmitter Switch, Power Supply : 18-36 V DC

Pressure Transmitter Key Features

• Piezo Resistive Sensor for precise pressure measurement

• Durable SS-316 enclosure for superior corrosion resistance

• IP-68 protection for reliable performance in harsh and wet environments

• Backlit LCD display for clear visibility

• Switch functionality for flexible control and monitoring

• RS-485 (MODBUS RTU) communication for easy integration (optional)

Technical SpecificationsPerformance Characteristics

• Sensor Type: Piezo Resistive

• Pressure Range:

  • AP URL: 100 kPa to 600 kPa

  • GP URL: 70 kPa to 100000 kPa

• Measuring Units: bar / kPa / Pascal / mmWc / kg/cm²

• Accuracy: ±0.25% MV

• Non-Linearity: 0.2% of Span

• Repeatability: <0.1% of Span

• Response Time: 1 second

• Overpressure Safety: 1.5× max pressure range

• Burst Pressure: 3× max pressure range

Electrical Specifications

• Power Supply: 18–36 V DC

• Display: Backlit LCD

• Output: 4–20 mA

• Relay Output: 1 Relay (Optional)

• Communication: RS-485 MODBUS RTU (Optional)

• Insulation Resistance: >100 MΩ at 100 VDC

Temperature & Environment

• Process Temperature: Up to 120°C

• Ambient Temperature: -20°C to 75°C

• Humidity: 5 to 95% RH (non-condensing)

• Protection Class: IP-68 (Weatherproof)

Material of Construction

• Wetted Parts: SS-316

• Enclosure: SS-316

• Electronics Housing: SS-316

• Electrical Connection: M12 Connector

Mechanical Specifications

• Process Connection: Refer ordering information

• Mounting Options: Direct line mount (vertical) / 2" pipe mount

• Weight: <3 kg
