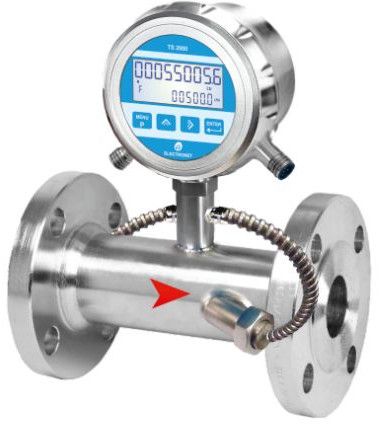

TS2000-UFM Ultrasonic Flow Meter with Switch

Features

• Ultrasonic measurement using Transit Time Technology

• Full-bore construction

• Empty pipe indication

• Backlit LCD display

• Durable SS-316 enclosure for superior corrosion resistance

• IP-68 protection for reliable operation in harsh and wet environments

• Measuring Principle: Ultrasonic flow measurement

• Media: Liquids

• Line Size: 15 NB to 300 NB

• Number of Paths: Single

• Electronics: Integral (Local) / Remote

• Remote Cable Length: 5 meters

• Output 1: 4–20 mA

• Output 2: Pulse – Open Collector (Optional)

• Alarm / Relay Output: 1 Relay Output (Optional)

• Communication Output: RS-485 (MODBUS RTU) (Optional)

• Display: Backlit LCD (6-digit Flow Rate, 8-digit Totalizer)

• Accuracy: < ±0.5% of M.V. (Velocity range: 0.3 m/s to 6 or 12 m/s)

• Linearity: ±0.5% of M.V.

• Repeatability: ±0.2% of M.V.

• Temperature Coefficient: ±0.05% per °C

• Process Temperature: Up to 200°C

• Process Pressure: Up to 16 kg/cm²

• Process Connections: ASA 150 Flanged (As per table)

• Flow Tube: SS-316

• Electronics Enclosure: SS-316

• Sensor: SS-316 / PVC

• Power Supply: 24V DC

• Response Time: 1 second

• Electrical Connection: M12 Connector

• Electronic Protection: Weatherproof IP-68

• Sensor / Flow Tube Protection: Weatherproof IP-68

• Ambient Temperature: –20°C to 75°C

• Humidity: 5% to 95% (Non-condensing)
