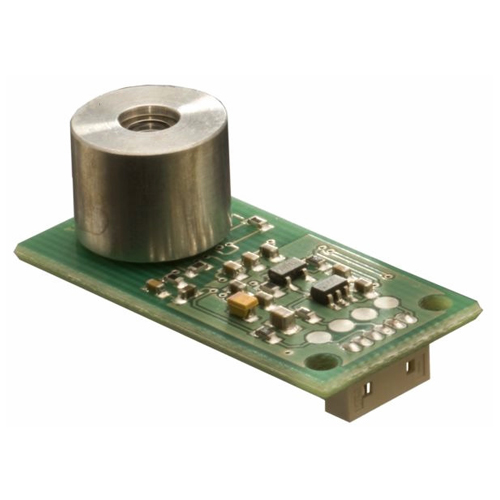

TSEV01CL55 Thermopile Sensor Infrared Temperature Sensor

Tsev01cl55 thermopile sensor module
• contact less temperature measurement
• high accuracy
• small size
• wide supply voltage range
• digital interface bus (i2c)
description
tsev01cl55 is a contact-less temperature measuring system for oem use based on the detection of infrared radiation.
Tsev01cl55 is equipped with an infrared sensor (thermopile) in front. The thermopile sensor has to be pointed at the target object of interest.
The basic working principle is:
• detection of infrared radiation with a thermopile sensor, which turns incoming radiation to an analogue voltage
• determination of sensor temperature using a thermistor
• further analogue signal processing and conditioning
• calculation of ambient and object temperature using a processing unit
• providing the ambient and objects temperature at digital output bus (i 2 c)
the tsev01cl55 is suitable for a wide range of application where non-contact temperature measurement is required.
The tsev01cl55 is equipped with a silicon lens (back focal length = 5.5mm) to narrow the field of view.
I2c pull-up resistors are provided on the sensor.
The i2c interface does not block the clock for clock-stretching.
Features
• 0℃ – 300℃ measurement range
• 4v – 16v supply voltage range
• up to 1.5% accuracy
• 2ma current consumption
applications
• contact less temperature measurement
• climate control
• industrial process control
• household applications
